Brand: Panduit
|
SKU:
10044268

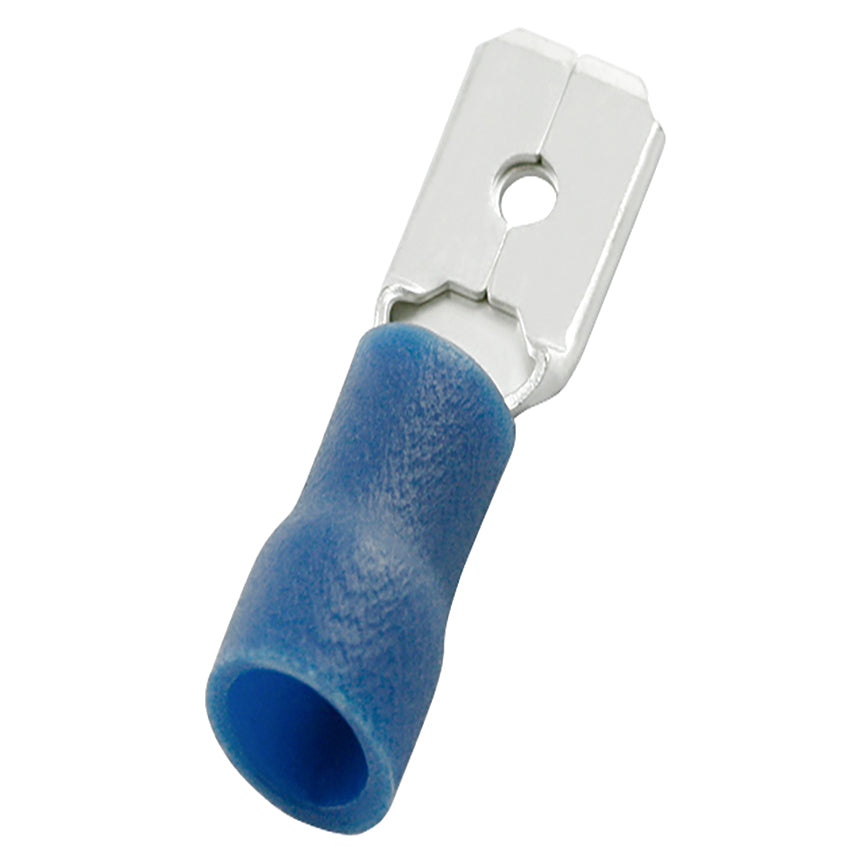

Panduit EDV14-187MB-Q | NA | UPC - 61305634229
Regular price
$8.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EDV14-187MB-Q | NA | UPC - 61305634229
Regular price
$8.29
Unit price
Description
Description
Panduit StrongHold Male Disconnect, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.187 x 0.032 in Tab, Butted Seam/Standard Barrel, 300 VAC, 9/32 in L Wire Strip, 0.165 in Dia Insulation, 167 deg F, Copper, Blue, TiN Coated, 0.75 in L x 0.187 in W
- Male tab couples with (all 0.25 x 0.032 in) female disconnects
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Maximum insulation temperature 221 deg F
- Nylon barrel insulated
Panduit Panduit EDV14-187MB-Q | NA | UPC - 61305634229 Key Specs
| Disconnect Type | Male Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | cULus |
| Maximum Voltage (V) | 300 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Length (In.) | 0.49 |
| Barrel Length (mm) | 12.5 |
| Maximum Operating Temperature (°C) | 75 |
Panduit Panduit EDV14-187MB-Q | NA | UPC - 61305634229 Environmental Information
| Panduit's RoHS Statement | Download and View |
