Panduit EDV14-250B-Q | NA | UPC - 61305636628
Regular price
$10.35
Unit price
Description
Description

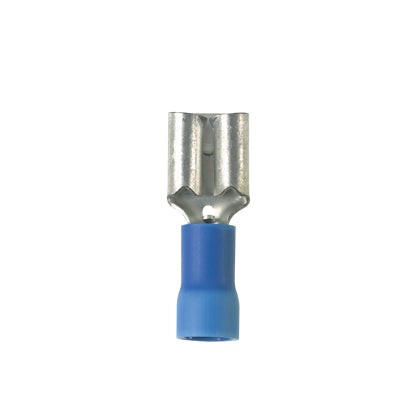

Panduit StrongHold Female Disconnect, Series: 250, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Serrated Barrel, Crimp Terminal, 600 VAC, 1/4 in L Wire Strip, 0.17 in Dia Insulation, 221 deg F, Brass/Vinyl, Blue, Tin Plated, 0.81 in L x 0.29 in W x 0.12 in H, Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit EDV14-250B-Q | NA | UPC - 61305636628 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.3 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL Recognized, CSA, cULus, E78522, LR31212 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | StrongHold |
Panduit Panduit EDV14-250B-Q | NA | UPC - 61305636628 Environmental Information
| Panduit's RoHS Statement | Download and View |
