Brand: Panduit
|
SKU:
10044271
Panduit EDV14-250FIB-Q | NA | UPC - 61305634183
Regular price
$9.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EDV14-250FIB-Q | NA | UPC - 61305634183
Regular price
$9.64
Unit price
Description
Description

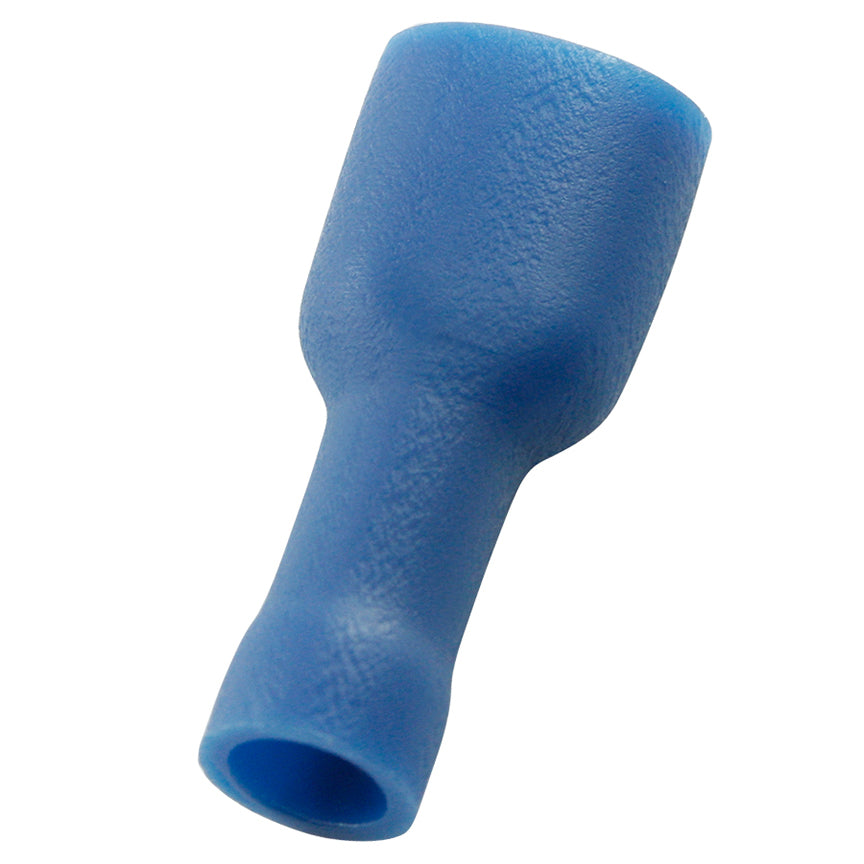

Panduit StrongHold Female Disconnect, Series: 250, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.165 in Dia Insulation, 167 deg F, Brass/Vinyl, Blue, Tin Plated, 0.87 in L x 0.26 in W, Fully Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit EDV14-250FIB-Q | NA | UPC - 61305634183 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl - Fully Insulated |
| Insulation Type | Vinyl - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 300 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Length (In.) | 0.49 |
| Barrel Length (mm) | 12.5 |
| Maximum Operating Temperature (°C) | 75 |
Panduit Panduit EDV14-250FIB-Q | NA | UPC - 61305634183 Environmental Information
| Panduit's RoHS Statement | Download and View |
