Panduit EDV14-250M-Q | NA | UPC - 61305636666
Regular price
$9.45
Unit price
Brand: Panduit
|
SKU:
10044272
Regular price
$9.45
Unit price
Description
Description

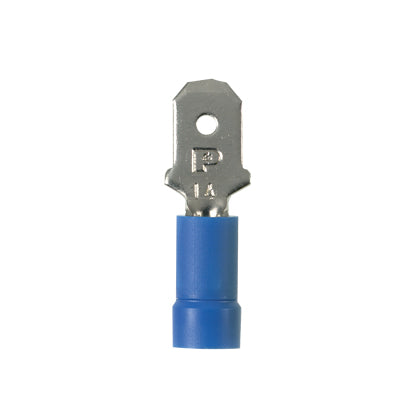

Panduit StrongHold Male Disconnect, Series: DV-M, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Brazed Seam/Funnel Entry Barrel, 600 VAC, 9/32 in L Wire Strip, 0.18 in Dia Insulation, 221 deg F, Copper, Blue, Nickel Plated, 0.96 in L x 0.25 in W
- It is fully insulated in a blue, nylon standard housing and has an expanded wire entry area for wires with large outside diameters
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fully insulated design provides protection from electrical shorts
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Nylon barrel insulated
- Disconnects on a reel
Panduit Panduit EDV14-250M-Q | NA | UPC - 61305636666 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel-Plated |
| Color Code | Blue |
| Flammability Rating | V0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | StrongHold |
Panduit Panduit EDV14-250M-Q | NA | UPC - 61305636666 Environmental Information
| Panduit's RoHS Statement | Download and View |
