Panduit EDV14-250P-LYY | Loose Piece Disconnect | UPC - 61305675786
Regular price
$17.14
Unit price
Description
Description

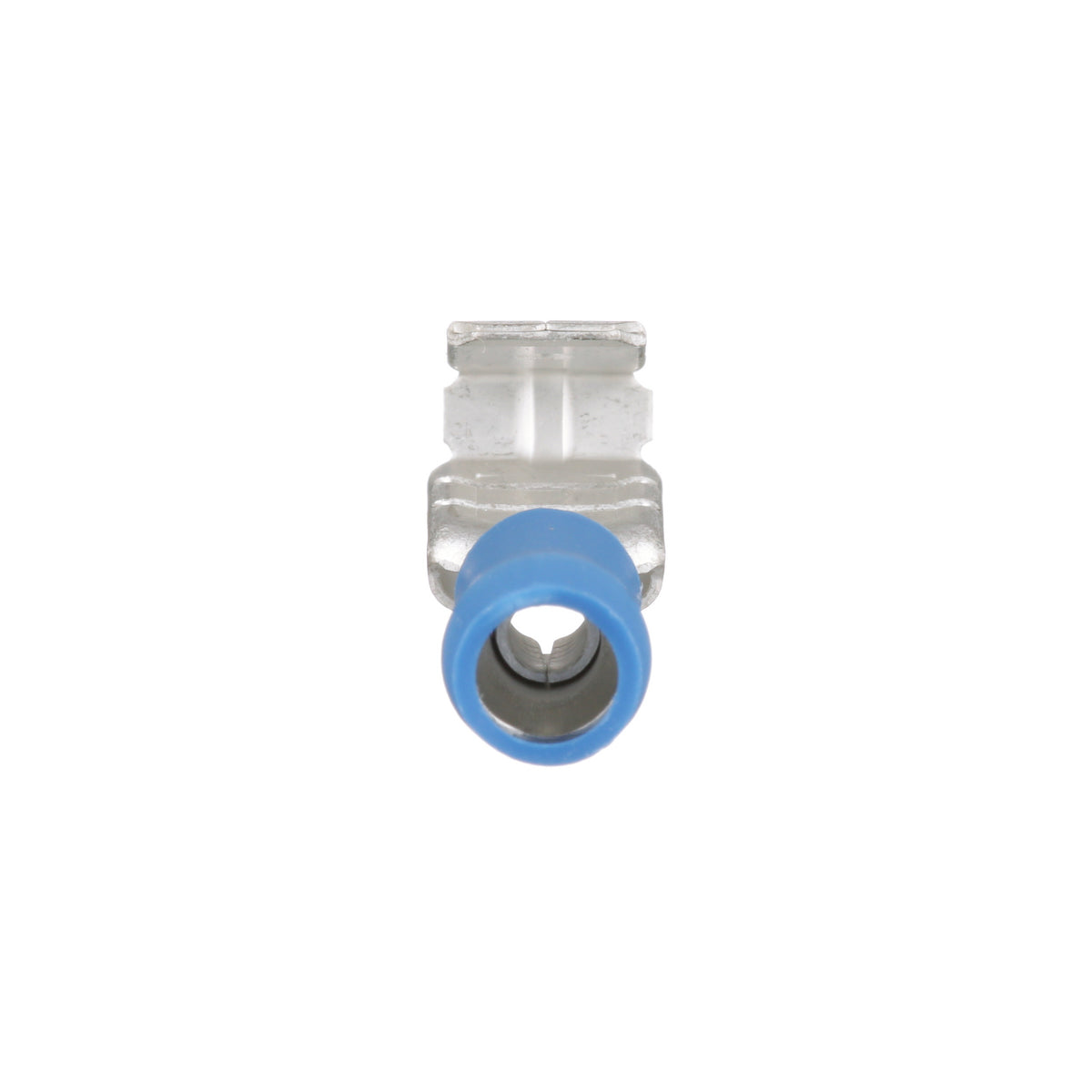

Panduit StrongHold Loose Piece Disconnect, Standard Copper Conductor, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Sleeve Barrel, Piggyback Terminal, 300 VAC, Specifications: Vinyl Barrel Insulation, 194 deg F, Brass, Blue, Tin Coated, 0.88 in L x 0.29 in W
Features + Benefits
Panduit EDV14-250P-LYY Key Specs
| Disconnect Type | Piggy Back Disconnect |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Wire Size (AWG) | 16 - 14 AWG (1.5 - 2.5) |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.3 |
| Tab Size (mm) | (6.3 x 0.8) |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Sub Brand | StrongHold |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Overall Width (In.) | 0.29 |
| Overall Width (mm) | 7.4 |
| Product Type | Loose Piece Disconnect |
| For Use With | CT-100A, CT-260, CT-1550, CT-1551, CT-2300/ST, CT-2500/L |
Panduit EDV14-250P-LYY Data Sheets
| Part Drawings | Piggyback Disconnect 22-14 awg | Download and View |
| Videos | StrongHold Terminals Product Video | Download and View |
