Panduit EDV14-250P-Q | NA | UPC - 61305634178
Regular price
$9.45
Unit price
Brand: Panduit
|
SKU:
10044273
Regular price
$9.45
Unit price
Description
Description

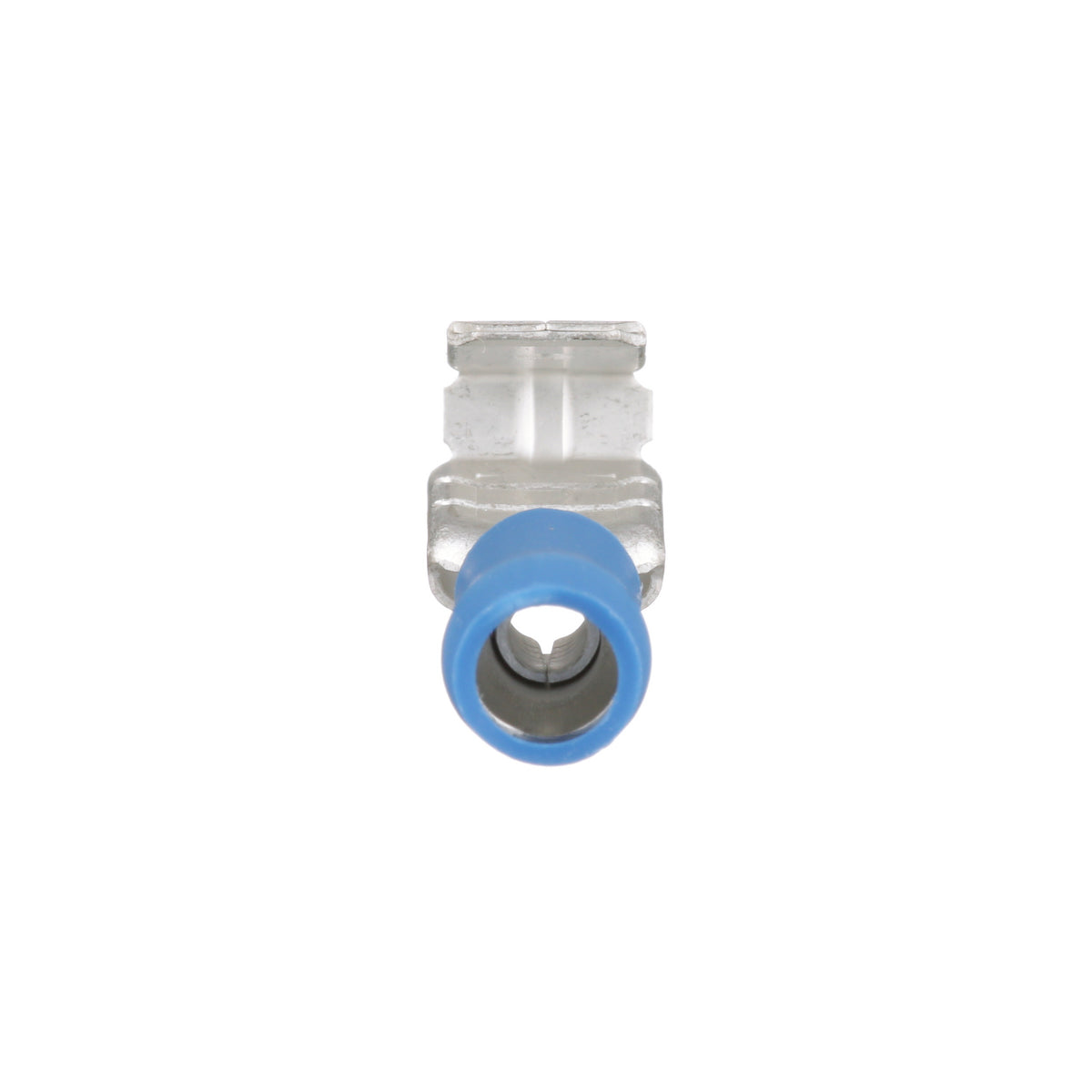

Panduit StrongHold Piggyback Disconnect, Insulated Standard, Series: DV-P, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Sleeved/Standard Barrel, 300 VAC, 1/4 in L Wire Strip, 0.16 in Dia Vinyl Barrel Insulation, 194 deg F, Copper, Blue, TiN Coated, 0.88 in L x 0.29 in W
- Brass stamping, vinyl insulation housing material
Panduit Panduit EDV14-250P-Q | NA | UPC - 61305634178 Key Specs
| Disconnect Type | Piggy Back Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.3 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 300 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
Panduit Panduit EDV14-250P-Q | NA | UPC - 61305634178 Environmental Information
| Panduit's RoHS Statement | Download and View |
