Panduit EDV18-187MB-Q | NA | UPC - 61305634230
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
10044275
Regular price
$8.90
Unit price
Description
Description

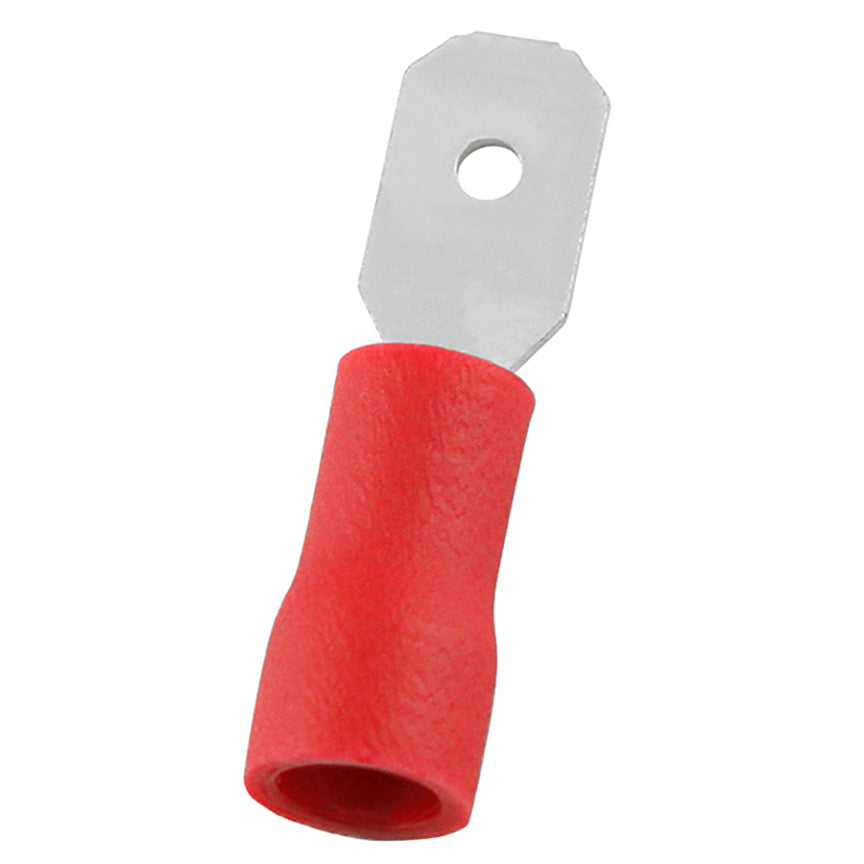

Panduit StrongHold Male Disconnect, Stranded Copper Conductor, 22 to 16 AWG Conductor, 0.187 x 0.032 in Tab, Butted Seam/Standard Barrel, 300 VAC, 9/32 in L Wire Strip, 0.145 in Dia Insulation, 167 deg F, Copper, Red, TiN Coated, 0.75 in L x 0.187 in W
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation grip sleeve
- Nylon barrel insulated
Panduit Panduit EDV18-187MB-Q | NA | UPC - 61305634230 Key Specs
| Disconnect Type | Male Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 300 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Length (In.) | 0.49 |
| Barrel Length (mm) | 12.5 |
| Maximum Operating Temperature (°C) | 75 |
Panduit Panduit EDV18-187MB-Q | NA | UPC - 61305634230 Environmental Information
| Panduit's RoHS Statement | Download and View |
