Description

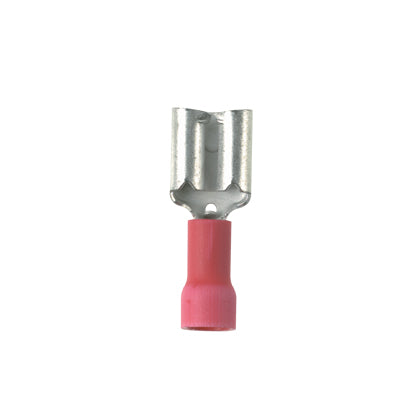

Panduit StrongHold Female Disconnect, Series: 188, Copper/Stranded Conductor, 22 to 18 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, Specifications: 1/4 in L Wire Strip, 0.15 in Dia Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass/Vinyl, Red, TiN Coated, 0.76 in L x 0.23 in W x 0.1 in H, Insulated

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Panduit Panduit EDV18-188B-Q | NA | UPC - 61305636629 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Vinyl - Barrel Insulated
Insulation Type	Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.25
Wire Strip Length (mm)	6.3
Tab Size (In.)	0.19
Tab Size (mm)	4.8
Standards Met	cULus, E78522
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tin-Plated
Color Code	Red
Flammability Rating	V0
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Sub Brand	StrongHold
