Panduit EDV18-250FIB-Q | NA | UPC - 61305634184
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
10044278
Regular price
$8.90
Unit price
Description
Description

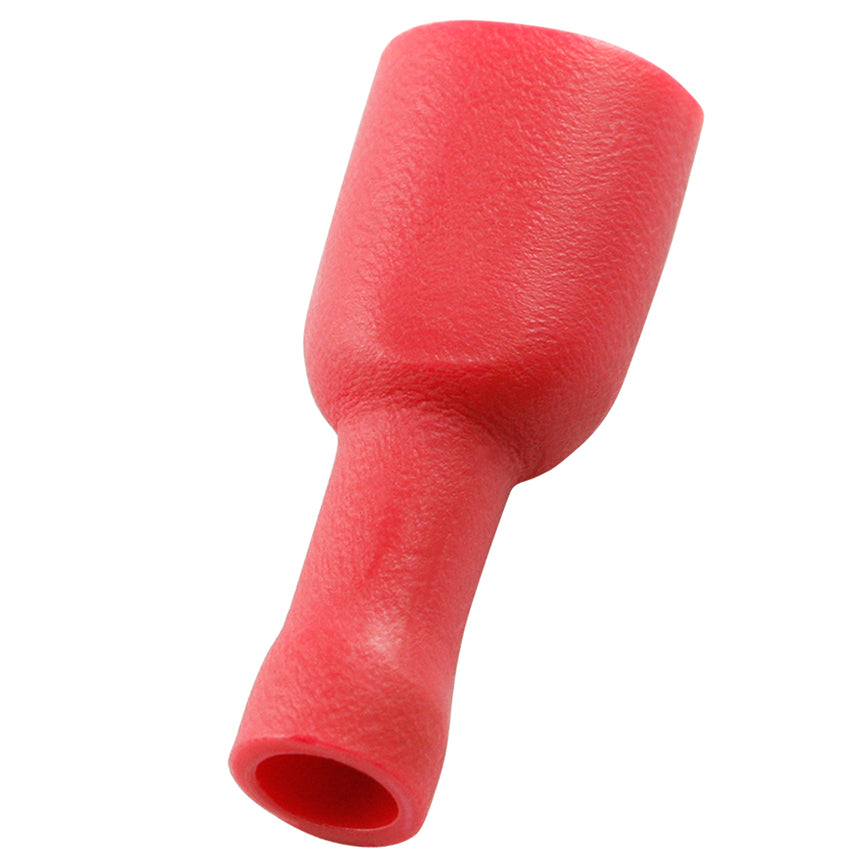

Panduit StrongHold Female Disconnect, Series: 250, Stranded Copper Conductor, 22 to 16 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.145 in Dia Insulation, 167 deg F, Brass/Vinyl, Red, Tin Plated, 0.87 in L x 0.26 in W, Fully Insulated
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit EDV18-250FIB-Q | NA | UPC - 61305634184 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 300 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Length (In.) | 0.3 |
| Barrel Length (mm) | 7.5 |
| Maximum Operating Temperature (°C) | 75 |
Panduit Panduit EDV18-250FIB-Q | NA | UPC - 61305634184 Environmental Information
| Panduit's RoHS Statement | Download and View |
