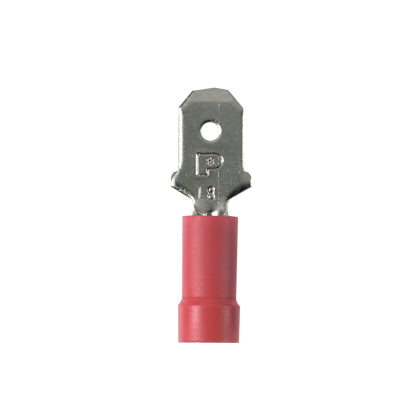

Panduit EDV18-250M-Q | NA | UPC - 61305636667
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
10044279
Regular price
$8.90
Unit price
Description
Description
Panduit StrongHold Male Disconnect, Series: DV-M, Stranded Copper Conductor, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Brazed Seam/Funnel Entry Barrel, 600 VAC, 9/32 in L Wire Strip, 0.15 in Dia Insulation, 221 deg F, Brass, Red, Nickel Plated, 0.98 in L x 0.25 in W
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Coupler, male and female parts sold separately
- Maximum insulation temperature 221 deg F
- UL flammability UL 94V-2/HB, maximum insulation temperature 221 deg F (105 deg C)
- UL and CSA rated up to 600 VAC per UL 310
- Nylon barrel insulated
Panduit Panduit EDV18-250M-Q | NA | UPC - 61305636667 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel-Plated |
| Color Code | Red |
| Flammability Rating | V0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | StrongHold |
Panduit Panduit EDV18-250M-Q | NA | UPC - 61305636667 Environmental Information
| Panduit's RoHS Statement | Download and View |
