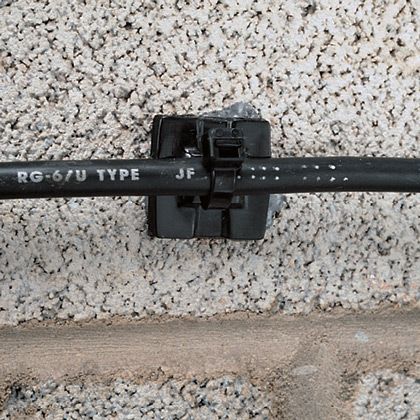

Panduit EMS-A-C | Cable Tie Mount
Description
Description
Our budget-conscious epoxy applied cable tie mounts offer a fast and reliable way to secure your cables to virtually any surface, offering a strong, durable hold, eliminate the need for drilling.
The epoxy applied cable tie mount in natural color is affixed with EMA epoxy adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ti es. It is designed for indoor environments and comes in packages of 100.
Panduit Cable Tie Mount, 2-Way Tie Entry, EMA Epoxy Mount, 0.19 in Maximum Tie Width, 0.98 in Base Length, 0.98 in Base Width, Nylon 6.6, Natural
Panduit - EMS-A-C - Features
- Eliminate the need to drill holes
- Provide a fast, strong, economical method to secure wire/cable to most surfaces
- For use with miniature, intermediate and standard cable ties
- Polyamide (PA) insulation
Specifications
Specifications
Panduit - EMS-A-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | EMS-A-C |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Epoxy Applied Mounts to Secure Wire/Cable to Most Surfaces |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Adhesive |
| Overall Length (In.) | 0.26 |
| Overall Length (mm) | 6.6 |
| Overall Width (In.) | 0.98 |
| Overall Width (mm) | 24.9 |
| Overall Height (In.) | 0.98 |
| Overall Height (mm) | 24.9 |
| Standards Met | RoHS Compliant |
| Static Load Capacity (kg) | 4.5 |
| Static Load Capacity (lb) | 10 |
| For Use With | Miniature, Intermediate, Standard Cross-section Cable Ties |
| UPC | 07498358015 |
Panduit - EMS-A-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - EMS-A-C - Videos
| Panduit EMS-A-C Video 1 | Click to View |
|---|
