Brand: Panduit
|
SKU:
10044284

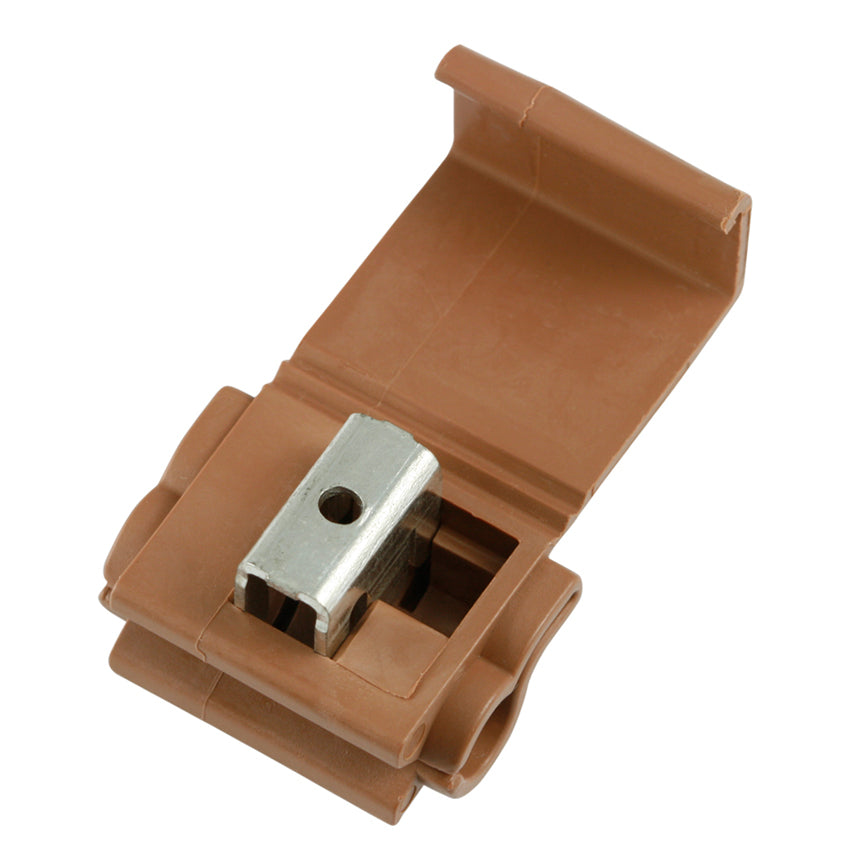

Panduit EQSP10-18D-Q | StrongHold Quick Splice
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EQSP10-18D-Q | StrongHold Quick Splice
Regular price
$18.45
Unit price
Description
Description
Panduit EQSP10-18D-Q | StrongHold Quick Splice
Panduit StrongHold Quick Splice Connector, Insulated, Stranded Copper Wire, 12 to 10 AWG, 18 to 14 AWG Wire, 600 VAC, 221 deg F, Brass/Polypropylene, Brown, Tin Plated, 0.83 in L x 0.6 in W x 0.43 in H
Panduit - EQSP10-18D-Q - Features
- Brass stamping, polypropylene insulation housing material
Specifications
Specifications
Panduit - EQSP10-18D-Q - Specifications
| Product Type | Quick Splice |
|---|---|
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 18-14, 12-10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG STR) | 18 |
| Minimum Copper Conductor Size (AWG) | 18 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Minimum Metric Conductor Size (mm²) | 0.8 |
| Overall Length (In.) | 0.83 |
| Overall Length (mm) | 21.1 |
| Overall Width (In.) | 0.6 |
| Overall Width (mm) | 15.2 |
| Overall Height (In.) | 0.43 |
| Overall Height (mm) | 10.9 |
| Standards Met | cULus |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| UNSPSC Code | 39121400 |
Panduit - EQSP10-18D-Q - Package Includes
| UPC | 61305634232 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0592 |
| Std. Ctn. Qty. | 1000 |
| Std. Ctn. Volume (cf) | 2.3660 |
Panduit - EQSP10-18D-Q - Videos
| Panduit EQSP10-18D-Q Video | Click to View |
|---|
