Brand: Panduit | SKU: 10044285

Panduit EQSP10-Q | StrongHold Quick Splice

$14.50

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

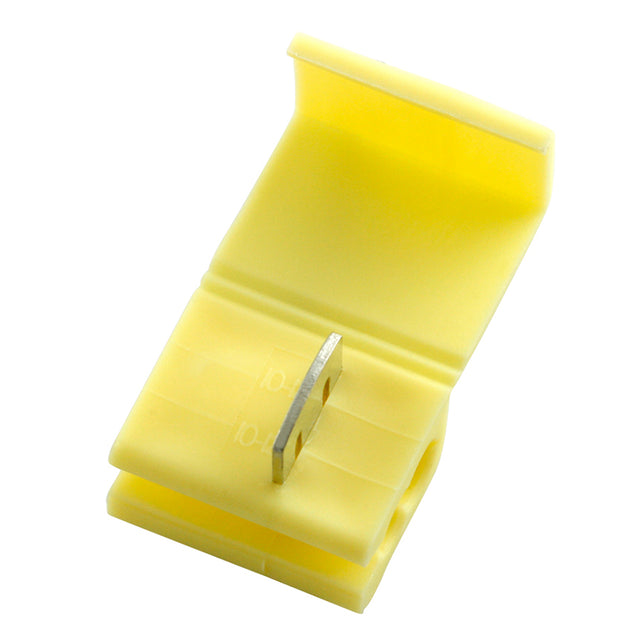

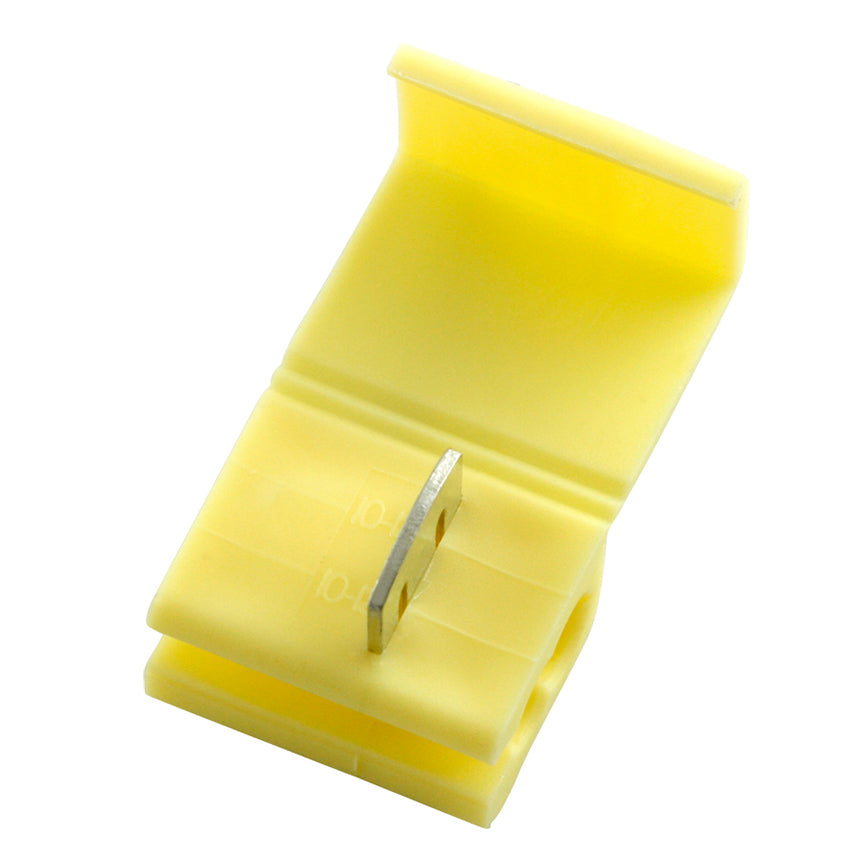

Panduit EQSP10-Q | StrongHold Quick Splice

Panduit StrongHold Quick Splice Connector, Insulated, Stranded Copper Wire, 12 to 10 AWG Wire, 600 VAC, 221 deg F, Brass/Polypropylene, Yellow, Tin Plated, 0.66 in H x 0.6 in W Dimensions

Panduit - EQSP10-Q - Features

Brass stamping, polypropylene insulation housing material

Specifications

Panduit - EQSP10-Q - Specifications

Product Type	Quick Splice
Base Material	Brass
Finish/Coating	Tin-Plated
Copper Conductor Size (AWG)	12-10
Maximum Copper Conductor Size (AWG STR)	10
Maximum Copper Conductor Size (AWG)	10
Minimum Copper Conductor Size (AWG STR)	12
Minimum Copper Conductor Size (AWG)	12
Maximum Metric Conductor Size (mm²)	6
Minimum Metric Conductor Size (mm²)	4
Overall Length (In.)	0.81
Overall Length (mm)	20.6
Overall Width (In.)	0.6
Overall Width (mm)	15.2
Overall Height (In.)	0.66
Overall Height (mm)	16.8
Standards Met	cULus
CSA Temperature Rating (°C)	105
CSA Temperature Rating (°F)	221
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
UNSPSC Code	39121400

Panduit - EQSP10-Q - Package Includes

UPC	61305634190
Std. Pkg. Qty.	25
Std. Pkg. Volume (cf)	0.0140
Std. Ctn. Qty.	4000
Std. Ctn. Volume (cf)	2.2424

Panduit - EQSP10-Q - Videos

Panduit EQSP10-Q Video	Click to View
