Panduit ERT2M-C20 | ELASTOMERIC CABLE TIE
Description
Description
Our elastomeric cable tie is your solution for network environments. Easy to install, release, and reuse thanks to its elastic material and locking head design, it withstands weather and UV exposure.

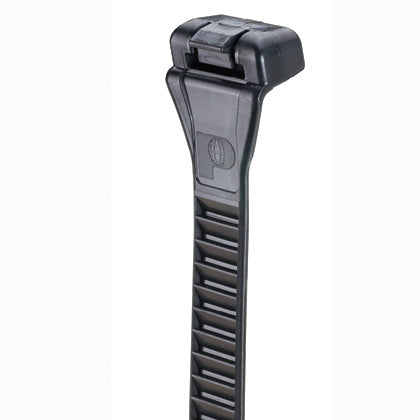

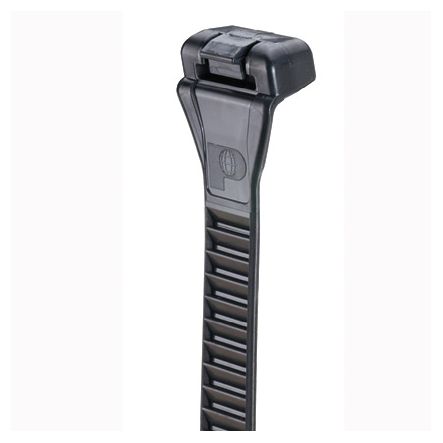

Elastomeric Cable Tie, Hand-Releasable, Miniature Cross Section, Black, 8.5" (216mm)
Panduit elastomeric cable ties provide reliable bundling of high performance fiber and copper cables, while maintaining network data integrity by protecting against over tensioning. the soft material has no sharp edges, promoting worker safety. these flexible ties cinch the cable bundle, preventing lateral movement along the bundle. the UL 94V-0 flammability rating and halogen-free construction ensures compliance with environmental and industry requirements. the releasable design accommodates frequent moves, adds and changes (MACs). these ties are weather and UV-resistant, suitable for use in outdoor as well as indoor applications. elastomeric cable ties are part of the comprehensive family of Panduit cable ties that ensure reliability, scalability and aesthetics for network applications.
Panduit Miniature Cable Tie, Elastomeric, 8-1/2 in Length, 1/2 in Width, 0.09 in Thickness, 2.35 in Bundle Dia, Releasable, 18 lb Tensile, -70 to 220 deg F, TPU, Black
Panduit - ERT2M-C20 - Features
- Elastic material provides a flexible tie body that safely contours around cable bundle to prevent over tensioning of data cables to maintain network integrity
- UL 94V-0 material provides greater flame resistance and meets stringent telecommunication flammability requirements
- Greater resistance to damage caused by ultraviolet light indoor or outdoor use
- Soft material has no sharp edges to protect the installer and cable bundle for improved jobsite safety and reliability
- The high coefficient of friction material provides a tight grip and prevents lateral movement along cable bundle, minimizing overall installation time and potential rework
- Releasable design allows release and reuse to accommodate frequent moves, adds and changes to support evolving equipment and cabling needs
- Halogen-free, non-toxic and environmentally safe material will not release toxic or corrosive gases upon combustion
- Locking head design the tapered tip tail threads into locking head to speed productivity, industry accepted, intuitive tie design
- No sharp edges
Specifications
Specifications
Panduit - ERT2M-C20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ERT2M-C20 |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Product Type | Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | TPU |
| Resistance Properties | Heat-Resistant |
| Overall Length (In.) | 8.5 |
| Overall Length (mm) | 215.9 |
| Body Width (In.) | 0.84 |
| Body Width (mm) | 21.4 |
| Body Thickness (In.) | 0.09 |
| Body Thickness (mm) | 2.3 |
| Maximum Bundle Diameter (In.) | 2.35 |
| Maximum Bundle Diameter (mm) | 59.7 |
| Minimum Bundle Diameter (In.) | 0.38 |
| Minimum Bundle Diameter (mm) | 9.6 |
| Minimum Loop Tensile Strength (N) | 80.06 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 104 |
| Maximum Operating Temperature (°F) | 219 |
| Minimum Operating Temperature (°C) | -57 |
| Minimum Operating Temperature (°F) | -71 |
| UPC | 07498308075 |
