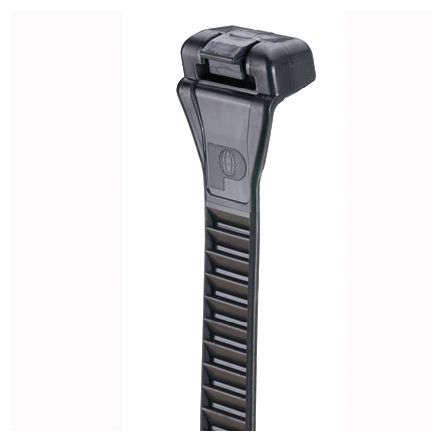

Panduit ERT2M-C20 | ELASTOMERIC CABLE TIE
Description
Description
Panduit Elastomeric Cable Ties are built with a locking head design to increase productivity. Thermoplastic polyurethane bundles and protects network data without over-tensioning. They are not only flexible and elastic, but fully releasable to accommodate frequent moves, adds and changes. And, with weather- and UV-resistance, as well as a 94V-0 flammability rating, you can trust them to reliably last in both indoor and outdoor environments. Miniature cross section, 8.5L (216mm), Tensile Strength: 80, Bundles up to 2.4 (60mm), Black, 100pc.
Panduit ERT2M-C20 - CABLE TIE - ELASTOMERIC CABLE TIE, BLACK
Specifications
Specifications
Panduit - ERT2M-C20 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - ERT2M-C20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ERT2M-C20 |
| Item Description | ELASTOMERIC CABLE TIE |
| Product Type | Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Thermoplastic Poly-Urethane (TPU) |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 8.5 |
| Overall Length (mm) | 215.9 |
| Body Width (In.) | 0.84 |
| Body Width (mm) | 21.4 |
| Body Thickness (In.) | 0.09 |
| Body Thickness (mm) | 2.3 |
| Maximum Bundle Diameter (In.) | 2.35 |
| Maximum Bundle Diameter (mm) | 59.7 |
| Minimum Bundle Diameter (In.) | 0.38 |
| Minimum Bundle Diameter (mm) | 9.6 |
| Minimum Loop Tensile Strength (N) | 80.06 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 104 |
| Maximum Operating Temperature (°F) | 219 |
| Minimum Operating Temperature (°C) | -57 |
| Minimum Operating Temperature (°F) | -71 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS |
| Application | Bundle high performance communication cabling |
| Part Features | Elastic Material, No Sharp Edges |
Panduit - ERT2M-C20 - Package Information
| UPC | 07498308075 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1030 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 1.0299 |
