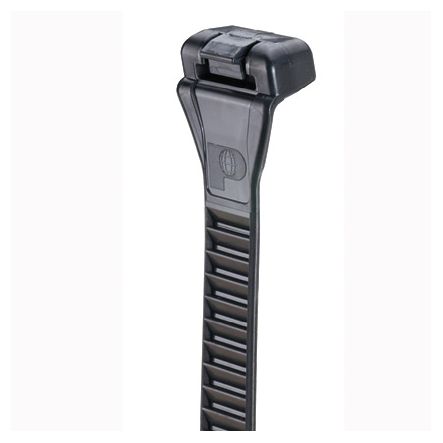

Panduit ERT4.5M-C20 | Elastomeric Cable Tie
Description
Description
Panduit Elastomeric Cable Ties are built with a locking head design to increase productivity. Thermoplastic polyurethane bundles and protects network data without over-tensioning. They are not only flexible and elastic, but fully releasable to accommodate frequent moves, adds and changes. And, with weather- and UV-resistance, as well as a 94V-0 flammability rating, you can trust them to reliably last in both indoor and outdoor environments. Miniature cross section, 16.0L (406mm), Tensile Strength: 80, Bundles up to 4.5 (114mm), Black, 100pc.
Panduit - ERT4.5M-C20 - Features
- Elastomeric Cable Tie, Hand-Releasable, Miniature Cross Section, Black, 16.0"; (406mm)
Specifications
Specifications
Panduit - ERT4.5M-C20 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - ERT4.5M-C20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ERT4.5M-C20 |
| Item Description | Elastomeric Cable Tie |
| Product Type | Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Thermoplastic Poly-Urethane (TPU) |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 16 |
| Overall Length (mm) | 406.4 |
| Body Width (In.) | 0.84 |
| Body Width (mm) | 21.4 |
| Body Thickness (In.) | 0.09 |
| Body Thickness (mm) | 2.3 |
| Maximum Bundle Diameter (In.) | 4.5 |
| Maximum Bundle Diameter (mm) | 114.3 |
| Minimum Bundle Diameter (In.) | 0.38 |
| Minimum Bundle Diameter (mm) | 9.6 |
| Minimum Loop Tensile Strength (N) | 80.06 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 104 |
| Maximum Operating Temperature (°F) | 219 |
| Minimum Operating Temperature (°C) | -57 |
| Minimum Operating Temperature (°F) | -71 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS |
| Application | Bundle high performance communication cabling |
| Part Features | Elastic Material, No Sharp Edges |
Panduit - ERT4.5M-C20 - Package Information
| UPC | 07498311545 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0977 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.9766 |
