Brand: Panduit
|
SKU:
10044292
Panduit ES18B-Q | StrongHold Butt Splice
Regular price
$7.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ES18B-Q | StrongHold Butt Splice
Regular price
$7.59
Unit price
Description
Description

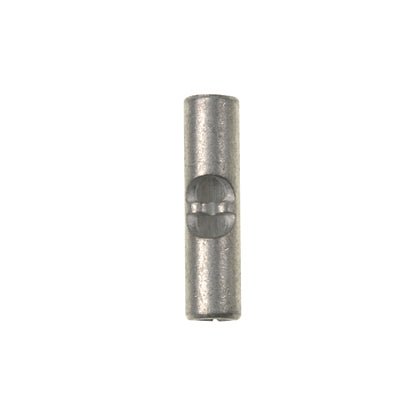

Panduit ES18B-Q | StrongHold Butt Splice
StrongHold™ Butt Splice, Non-Insulated, 22 - 18 AWG
Specifications
Specifications
Panduit - ES18B-Q - Specifications
| Product Type | Butt Splice |
|---|---|
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 22-18 |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 0.62 |
| Overall Length (mm) | 15.7 |
| Overall Width (In.) | 0.14 |
| Overall Width (mm) | 3.6 |
| Standards Met | UL Listed, CSA Certified |
| CSA Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°F) | 302 |
| Maximum Voltage (V) | 2000 |
| UNSPSC Code | 39121400 |
Panduit - ES18B-Q - Package Includes
| UPC | 61305636288 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0103 |
| Std. Ctn. Qty. | 250 |
| Std. Ctn. Volume (cf) | 0.1031 |
