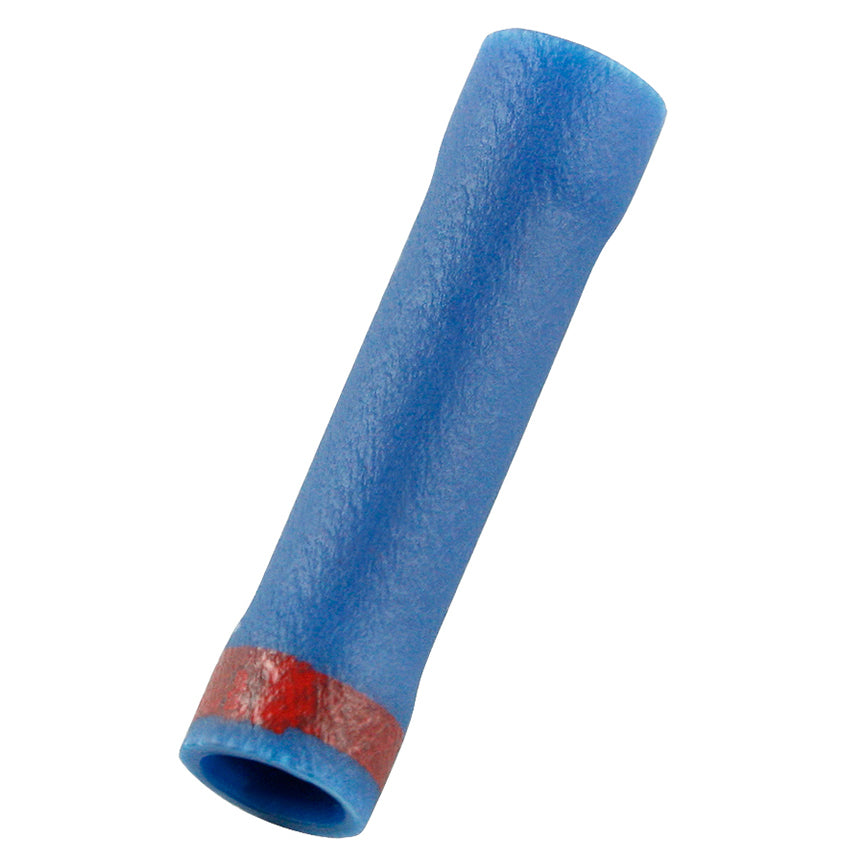

Panduit ESV14-ESV18-Q | StrongHold Step-Down Butt Splice, Blue, Vinyl, 16-14/22-18 AWG
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ESV14-ESV18-Q | StrongHold Step-Down Butt Splice, Blue, Vin...
Regular price
$23.72
Unit price
Description
Description
Panduit ESV14-ESV18-Q | StrongHold Step-Down Butt Splice, Blue, Vinyl, 16-14/22-18 AWG
Panduit StrongHold Butt Splice, Step Down, Stranded Copper Conductor, 16 to 14 AWG, 22 to 16 AWG Conductor, 0.96 in Length, Beveled/Brazed/Standard Barrel, 600 VAC, 9/32 in L Wire Strip, 0.18 in Dia Nylon Insulation, 167 deg F, Copper, Blue, TiN Coated
Panduit - ESV14-ESV18-Q - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Internal wire stop assures proper length of insertion into terminal barrel
Specifications
Specifications
Panduit - ESV14-ESV18-Q - Specifications
| Product Type | Step-Down Butt Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 22-18, 16-14 |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| Standards Met | cULus |
| CSA Temperature Rating (°C) | 75 |
| CSA Temperature Rating (°F) | 167 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| UNSPSC Code | 39121400 |
Panduit - ESV14-ESV18-Q - Package Includes
| UPC | 61305634165 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0017 |
| Std. Ctn. Qty. | 10000 |
| Std. Ctn. Volume (cf) | 0.6951 |
