Brand: Panduit
|
SKU:
10044298

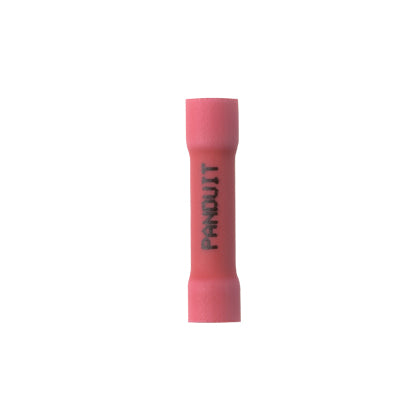

Panduit ESV18BX-Q | StrongHold Butt Splice, Red, Vinyl, 1.03", 22-18 AWG, PK25
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ESV18BX-Q | StrongHold Butt Splice, Red, Vinyl, 1.03",...
Regular price
$8.10
Unit price
Description
Description
Panduit ESV18BX-Q | StrongHold Butt Splice, Red, Vinyl, 1.03", 22-18 AWG, PK25
Panduit StrongHold Butt Splice, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, 1.03 in Length, Brazed/Funnel Entry/Expanded Barrel, 600 VAC, 5/16 in L Wire Strip, 0.17 in Dia Nylon Insulation, 221 deg F, Copper, Red, TiN Coated
Panduit - ESV18BX-Q - Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Internal wire stop assures proper length of insertion into terminal barrel
Specifications
Specifications
Panduit - ESV18BX-Q - Specifications
| Product Type | Butt Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 22-18 |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 1.03 |
| Overall Length (mm) | 26.2 |
| Standards Met | UL Listed, CSA Certified |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| UNSPSC Code | 39121400 |
Panduit - ESV18BX-Q - Package Includes
| UPC | 61305636618 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0103 |
| Std. Ctn. Qty. | 250 |
| Std. Ctn. Volume (cf) | 0.1031 |
Panduit - ESV18BX-Q - Videos
| Panduit ESV18BX-Q Video | Click to View |
|---|
