Brand: Panduit
|
SKU:
10010979

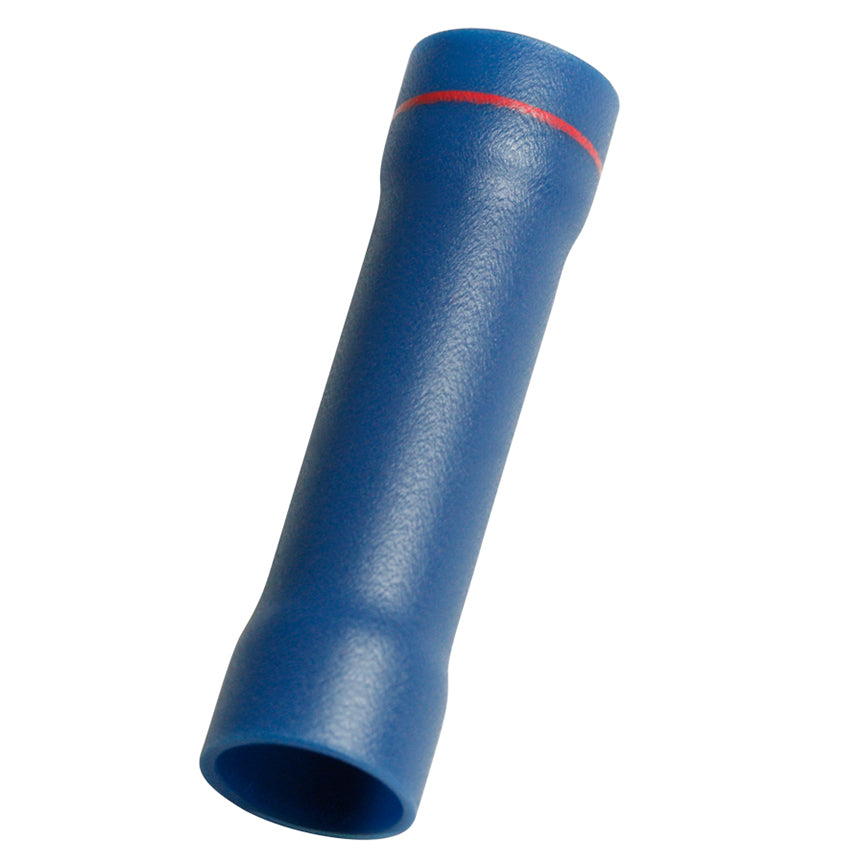

Panduit ESV6-ESV8-Q | StrongHold Step-Down Butt Splice, Blue, Vinyl, 1.77", 8-6 AWG, PK25
Regular price
$125.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ESV6-ESV8-Q | StrongHold Step-Down Butt Splice, Blue, Vinyl...
Regular price
$125.37
Unit price
Description
Description
Panduit ESV6-ESV8-Q | StrongHold Step-Down Butt Splice, Blue, Vinyl, 1.77", 8-6 AWG, PK25
Panduit StrongHold Butt Splice, Step Down, Stranded Copper Conductor, 6 AWG Conductor, 1.77 in Length, Beveled/Brazed/Standard Barrel, 600 VAC, 15/32 in L Wire Strip, 0.4 in Dia Nylon Insulation, 167 deg F, Copper, Blue, TiN Coated
Panduit - ESV6-ESV8-Q - Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal wire stop assures proper length of insertion into terminal barrel
Specifications
Specifications
Panduit - ESV6-ESV8-Q - Specifications
| Product Type | Step-Down Butt Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 8, 6 |
| Maximum Copper Conductor Size (AWG SOL) | 6 |
| Maximum Copper Conductor Size (AWG STR) | 6 |
| Maximum Copper Conductor Size (AWG) | 6 |
| Minimum Copper Conductor Size (AWG SOL) | 8 |
| Minimum Copper Conductor Size (AWG STR) | 8 |
| Minimum Copper Conductor Size (AWG) | 8 |
| Maximum Metric Conductor Size (mm²) | 14 |
| Minimum Metric Conductor Size (mm²) | 8 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 1.77 |
| Overall Length (mm) | 45 |
| Standards Met | cULus |
| CSA Temperature Rating (°C) | 75 |
| CSA Temperature Rating (°F) | 167 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Type | Butt Connector |
| UNSPSC Code | 39121400 |
Panduit - ESV6-ESV8-Q - Package Includes
| UPC | 61305634169 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0174 |
| Std. Ctn. Qty. | 1000 |
| Std. Ctn. Volume (cf) | 0.6951 |
Panduit - ESV6-ESV8-Q - Videos
| Panduit ESV6-ESV8-Q Video | Click to View |
|---|
