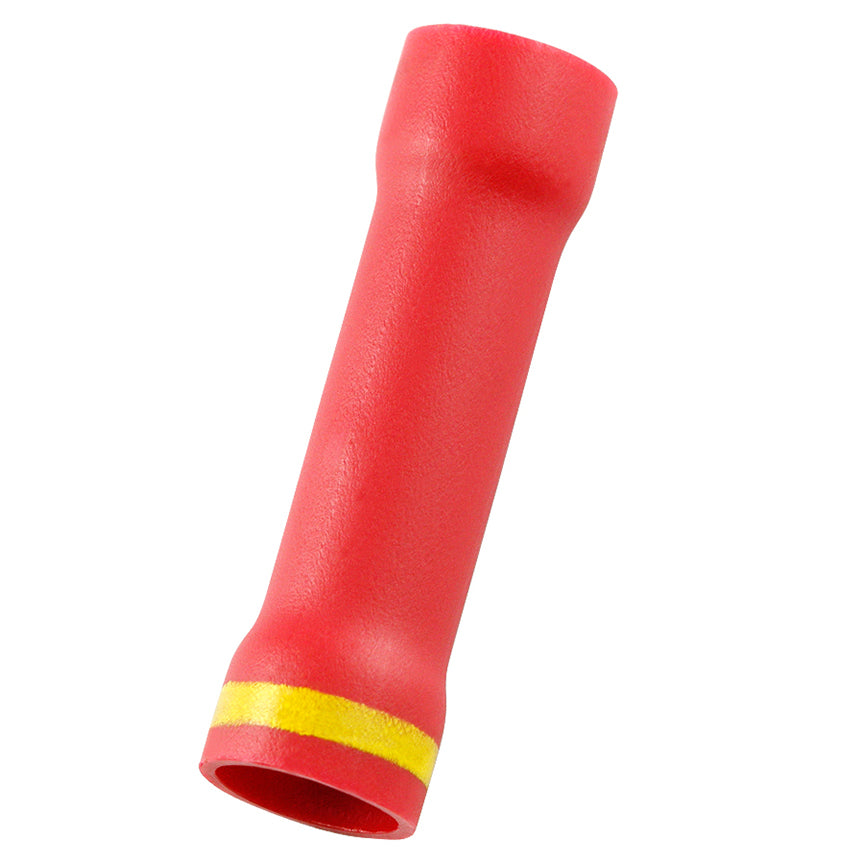

Panduit ESV8-ESV10-Q | StrongHold Step-Down Butt Splice, Red, Vinyl, 1.41", 8/12-10 AWG
Regular price
$121.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ESV8-ESV10-Q | StrongHold Step-Down Butt Splice, Red, Vinyl...
Regular price
$121.49
Unit price
Description
Description
Panduit ESV8-ESV10-Q | StrongHold Step-Down Butt Splice, Red, Vinyl, 1.41", 8/12-10 AWG
Panduit StrongHold Butt Splice, Step Down, Stranded Copper Conductor, 8 AWG, 12 to 10 AWG Conductor, 1.4 in Length, Beveled/Brazed/Standard Barrel, 600 VAC, 3/8 in L Wire Strip, 0.32 in Dia Nylon Insulation, 167 deg F, Copper, Red, TiN Coated
Panduit - ESV8-ESV10-Q - Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Internal wire stop assures proper length of insertion into terminal barrel
Specifications
Specifications
Panduit - ESV8-ESV10-Q - Specifications
| Product Type | Step-Down Butt Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 12-10, 8 |
| Maximum Copper Conductor Size (AWG SOL) | 8 |
| Maximum Copper Conductor Size (AWG STR) | 8 |
| Maximum Copper Conductor Size (AWG) | 8 |
| Minimum Copper Conductor Size (AWG SOL) | 12 |
| Minimum Copper Conductor Size (AWG STR) | 12 |
| Minimum Copper Conductor Size (AWG) | 12 |
| Maximum Metric Conductor Size (mm²) | 8 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 1.41 |
| Overall Length (mm) | 35.8 |
| CSA Temperature Rating (°C) | 75 |
| CSA Temperature Rating (°F) | 167 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Color Code | Red |
| UNSPSC Code | 39121400 |
Panduit - ESV8-ESV10-Q - Package Includes
| UPC | 61305634170 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.0064 |
| Std. Ctn. Qty. | 2000 |
| Std. Ctn. Volume (cf) | 0.5146 |
Panduit - ESV8-ESV10-Q - Videos
| Panduit ESV8-ESV10-Q Video | Click to View |
|---|
