Brand: Panduit
|
SKU:
10044301
Panduit EV10-10FB-Q | Loose Piece Forks | UPC - 07498328020
Regular price
$10.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EV10-10FB-Q | Loose Piece Forks | UPC - 07498328020
Regular price
$10.35
Unit price
Description
Description

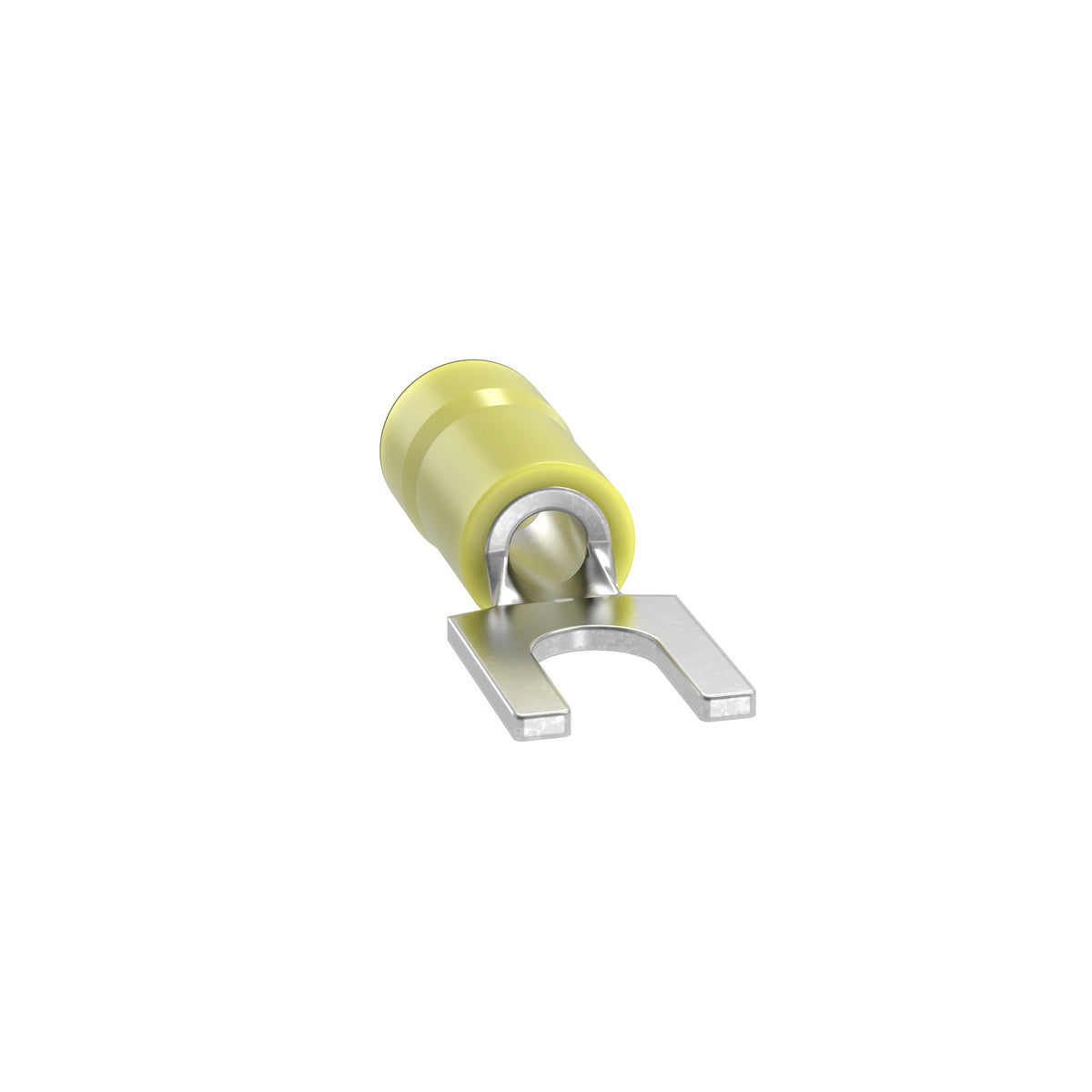

Panduit StrongHold Fork Terminal, Series: EV-FB, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.04 in Length, Butted Seam/Funnel Entry/Standard Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.23 in Dia Vinyl Insulation, 221 deg F, Copper, Tin Plated, Yellow
Panduit Panduit EV10-10FB-Q | Loose Piece Forks | UPC - 07498328020 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit EV10-10FB-Q | Loose Piece Forks | UPC - 07498328020 Environmental Information
| Panduit's RoHS Statement | Download and View |
