Brand: Panduit
|
SKU:
10044306

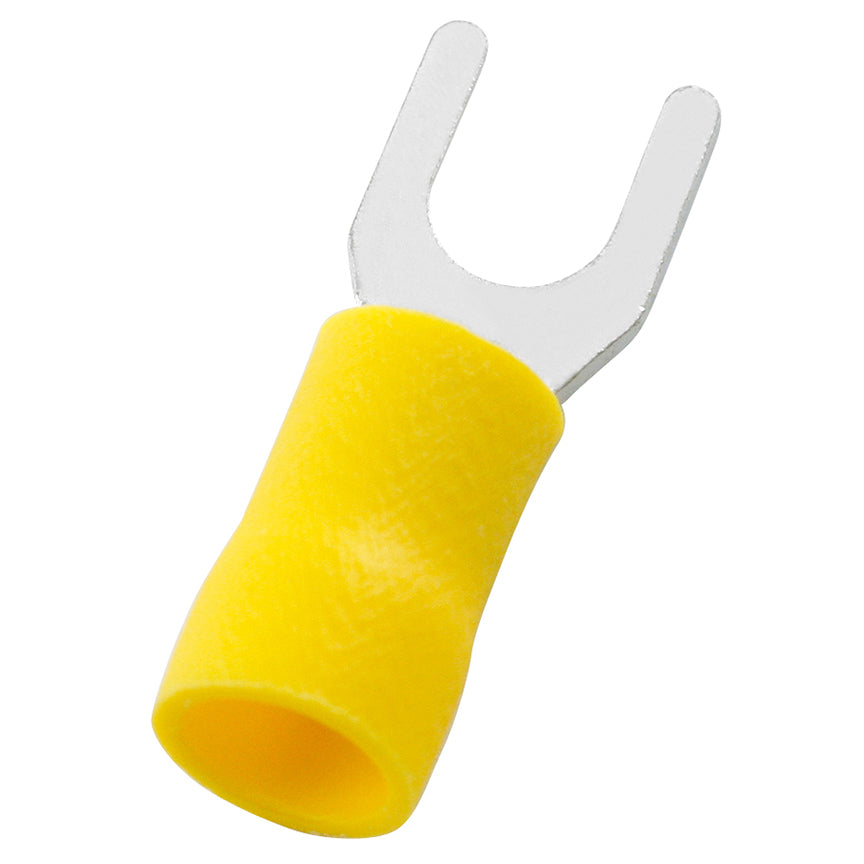

Panduit EV10-56FB-Q | Fork Terminal | UPC - 61305634187
Regular price
$10.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EV10-56FB-Q | Fork Terminal | UPC - 61305634187
Regular price
$10.35
Unit price
Description
Description
Panduit StrongHold Fork Terminal, Series: EV-FB, Stranded Copper Conductor, 12 to 10 AWG Conductor, 5/16 in Stud, 1.2 in Length, Butted Seam/Standard Barrel, Standard Fork Tongue, 0.55 in W x 0.039 in THK Tongue, 600 VAC, 11/32 in L Wire Strip, 0.24 in Dia Vinyl Insulation, 221 deg F, Copper, Tin Plated, Yellow
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit EV10-56FB-Q | Fork Terminal | UPC - 61305634187 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | M8 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | UL Listed 20U0, E52164 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit EV10-56FB-Q | Fork Terminal | UPC - 61305634187 Environmental Information
| Panduit's RoHS Statement | Download and View |
