Brand: Panduit
|
SKU:
10044334

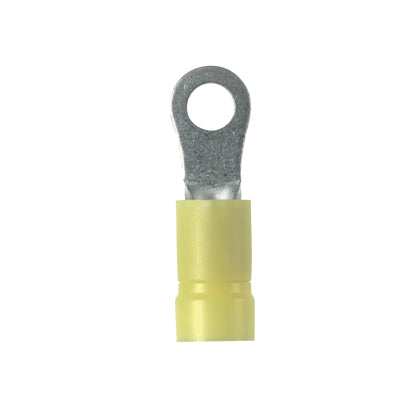

Panduit EV10-56RB-Q | Ring Terminal | UPC - 07498328187
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EV10-56RB-Q | Ring Terminal | UPC - 07498328187
Regular price
$10.81
Unit price
Description
Description
Panduit StrongHold Terminal, Type EV-RB, Stranded Conductor, 12 to 10 AWG Conductor, 5/16 in Stud, 1.23 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
- Without insulation
Panduit Panduit EV10-56RB-Q | Ring Terminal | UPC - 07498328187 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°F) | 221 |
| Stud Hole Size (In.) | 31/100 |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
Panduit Panduit EV10-56RB-Q | Ring Terminal | UPC - 07498328187 Environmental Information
| Panduit's RoHS Statement | Download and View |
