Brand: Panduit
|
SKU:
10647323

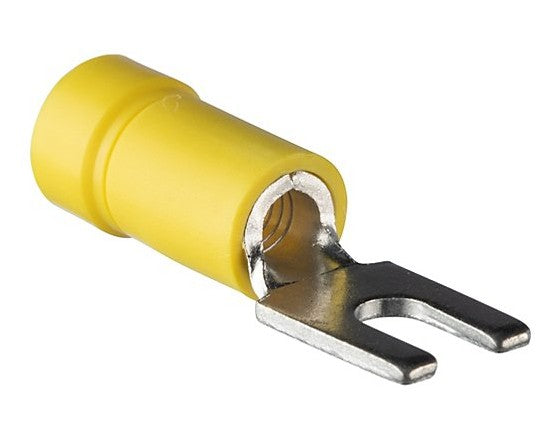

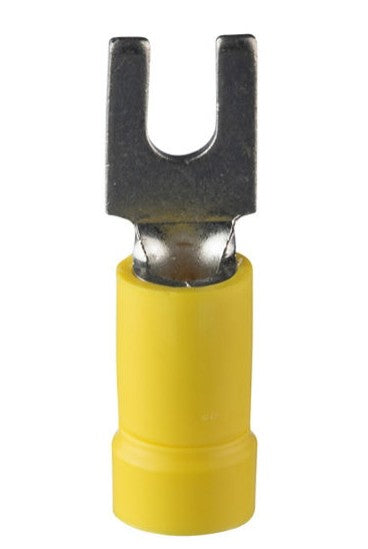

Panduit EV10-6FB-Q | StrongHold Vinyl-Insulated Fork Terminal
Regular price
$33.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EV10-6FB-Q | StrongHold Vinyl-Insulated Fork Terminal
Regular price
$33.21
Unit price
Description
Description
Panduit EV10-6FB-Q | StrongHold Vinyl-Insulated Fork Terminal
Our fork terminal creates a secure, long-lasting connection for wires to screws, studs, or terminal blocks, ideal for electrical applications.
Specifications
Specifications
Panduit - EV10-6FB-Q - Specifications
| Fork Type | Standard |
|---|---|
| Insulation Material | Vinyl |
| Copper Conductor Size | 12-10 AWG |
| Wire Size | 12-10 AWG |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31219 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Minimum Voltage (V) | 600 |
| Minimum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.51 |
