Brand: Panduit
|
SKU:
10044314

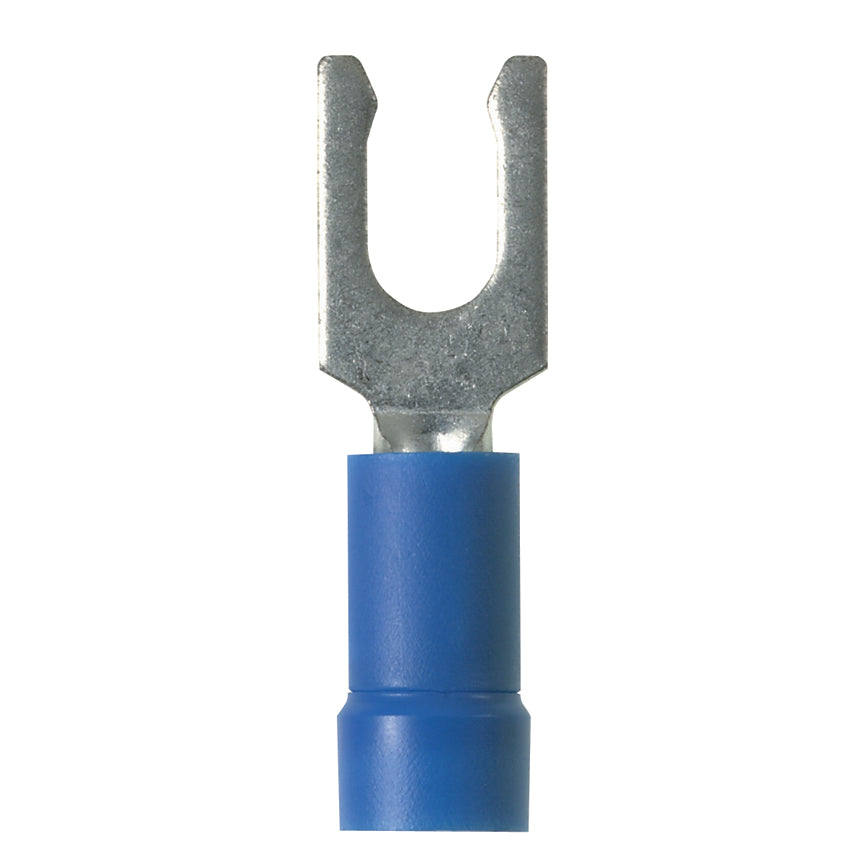

Panduit EV14-10LFB-Q | Fork Terminal | UPC - 61305636658
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EV14-10LFB-Q | Fork Terminal | UPC - 61305636658
Regular price
$9.45
Unit price
Description
Description
Panduit StrongHold Fork Terminal, Series: EV-LFB, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.97 in Length, Beveled Edge/Butted Seam/Funnel/Serrated Barrel, Locking Fork Tongue, 0.33 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 221 deg F, Brass/Copper, Tin Plated, Blue
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit EV14-10LFB-Q | Fork Terminal | UPC - 61305636658 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit EV14-10LFB-Q | Fork Terminal | UPC - 61305636658 Environmental Information
| Panduit's RoHS Statement | Download and View |
