Panduit EV14-38RB-Q | NA | UPC - 61305634195
Regular price
$9.45
Unit price
Brand: Panduit
|
SKU:
10044329
Regular price
$9.45
Unit price
Description
Description

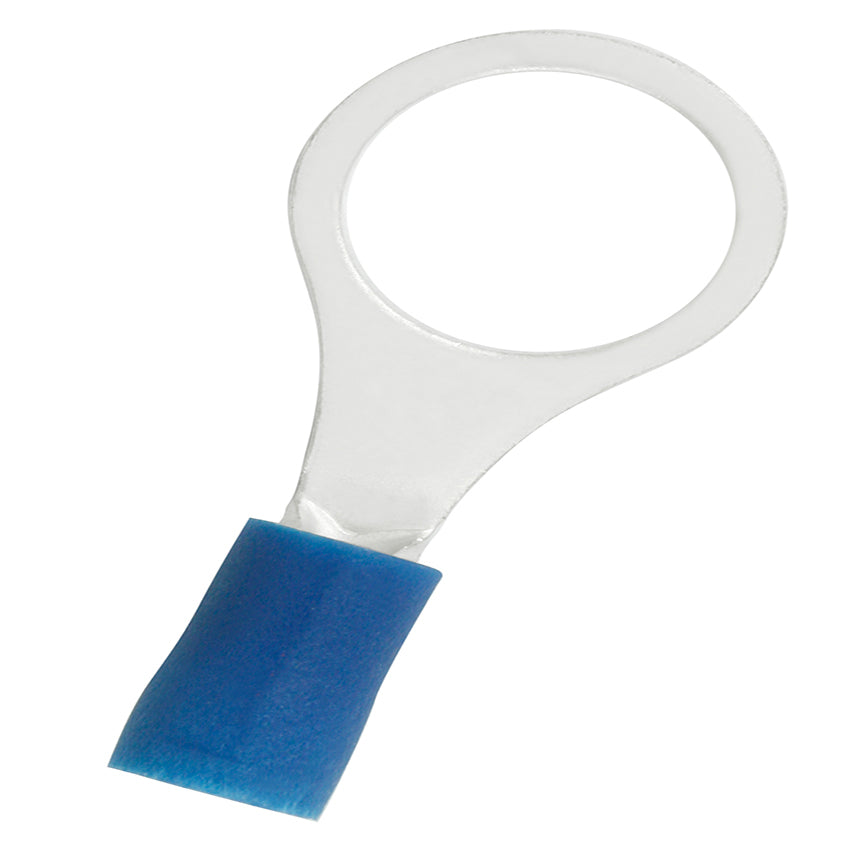

Panduit StrongHold Terminal, Copper/Stranded Conductor, 16 to 14 AWG Conductor, 3/8 in Stud, 1.2 in Length, Butted Seam Barrel, Ring Tongue, 0.54 in W x 0.031 in THK Tongue, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 221 deg F, Copper/Vinyl, TiN Coated, Blue
Panduit Panduit EV14-38RB-Q | NA | UPC - 61305634195 Key Specs
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Size | 43532 |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 20U0, E52164 |
| Base Material | Copper |
Panduit Panduit EV14-38RB-Q | NA | UPC - 61305634195 Environmental Information
| Panduit's RoHS Statement | Download and View |
