Brand: Panduit
|
SKU:
10044340
Panduit EV14-6RB-Q | Ring Terminal | UPC - 61305636728
Regular price
$9.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

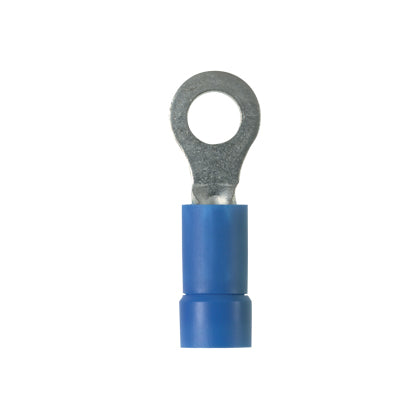

Panduit EV14-6RB-Q | Ring Terminal | UPC - 61305636728
Regular price
$9.07
Unit price
Description
Description
Panduit StrongHold Terminal, Type EV-RB, Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.92 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
- Without insulation
Panduit Panduit EV14-6RB-Q | Ring Terminal | UPC - 61305636728 Key Specs
| Stud Hole Size (In.) | 11/100 |
| Stud Hole Size (mm) | 3 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
Panduit Panduit EV14-6RB-Q | Ring Terminal | UPC - 61305636728 Environmental Information
| Panduit's RoHS Statement | Download and View |
