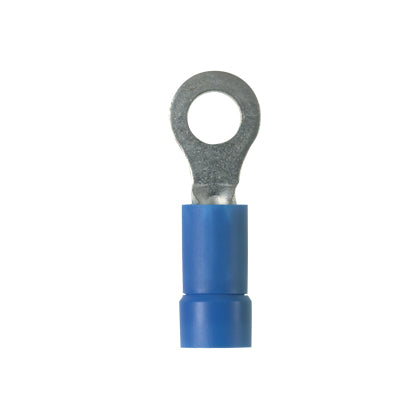

Panduit EV14-8RB-Q | Ring Terminal | UPC - 61305636731
Regular price
$9.07
Unit price
Brand: Panduit
|
SKU:
10044341
Regular price
$9.07
Unit price
Description
Description
Panduit StrongHold Terminal, Type EV-RB, Stranded Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.92 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 221 deg F, Copper, Tin Plated, Blue, 0.17 in Dia x 0.31 in W x 0.032 in THK
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit Panduit EV14-8RB-Q | Ring Terminal | UPC - 61305636731 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°F) | 221 |
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 4 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit EV14-8RB-Q | Ring Terminal | UPC - 61305636731 Environmental Information
| Panduit's RoHS Statement | Download and View |
