Brand: Panduit
|
SKU:
10044343

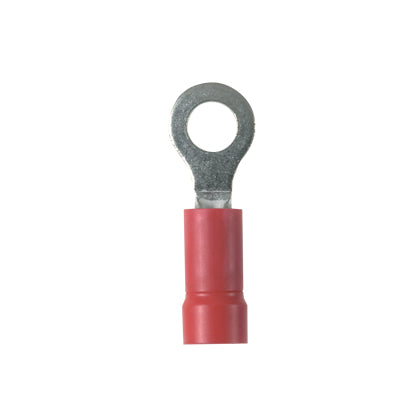

Panduit EV18-14RB-Q | Ring Terminal | UPC - 61305636738
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EV18-14RB-Q | Ring Terminal | UPC - 61305636738
Regular price
$8.10
Unit price
Description
Description
Panduit StrongHold Terminal, Type EV-RB, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1/4 in Stud, 1.11 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 0.46 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 221 deg F, Copper, Tin Plated, Red
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Without insulation
Panduit Panduit EV18-14RB-Q | Ring Terminal | UPC - 61305636738 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°F) | 221 |
| Stud Hole Size (In.) | 23/100 |
| Stud Hole Size (mm) | 6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit EV18-14RB-Q | Ring Terminal | UPC - 61305636738 Environmental Information
| Panduit's RoHS Statement | Download and View |
