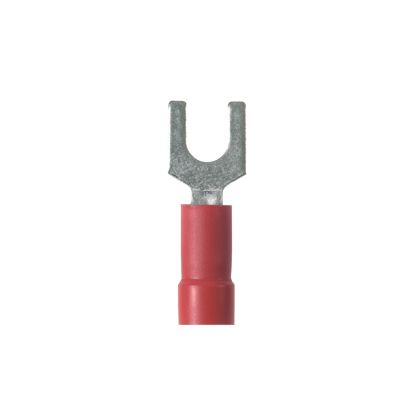

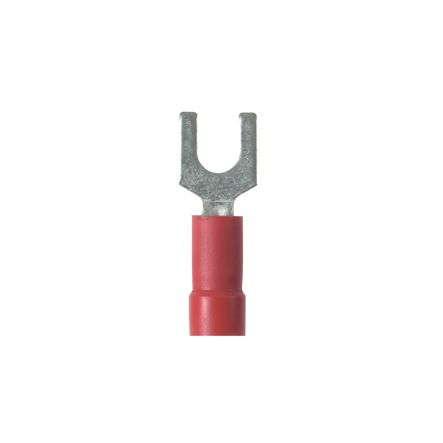

Panduit EV18-6FB-L | StrongHold EV18-6FB-L Fork Terminal
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
10137101
Regular price
$1.46
Unit price
Description
Description
Panduit EV18-6FB-L | StrongHold EV18-6FB-L Fork Terminal
StrongHold Fork Terminal, vinyl insulated, 22 - 18 AWG, #6 Stud Size.
Panduit EV18-6FB-L Stronghold Term Fork 18-22awgvinyl #6 Stud 600v Red
Specifications
Specifications
Panduit - EV18-6FB-L - Product Categories
- StrongHold Contractor Products
- StrongHold Fork Terminals
Panduit - EV18-6FB-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | EV18-6FB-L |
| Item Description | StrongHold EV18-6FB-L Fork Terminal |
| Minimum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°F) | 221 |
| Minimum Voltage (V) | 600 |
| Minimum Voltage (kV) | 0.6 |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | M3 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.43 |
| Barrel Length (mm) | 10.9 |
| Flammability Rating | UL587-H |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Stud Hole Size (In.) | 0.138 |
| Stud Hole Size (mm) | 3.2 |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 21.8 |
| Overall Width (In.) | 0.3 |
| Overall Width (mm) | 7.6 |
| Tongue Length (In.) | 0.43 |
| Tongue Length (mm) | 10.9 |
| Sub Brand | StrongHold |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
Panduit - EV18-6FB-L - Package Information
| UPC | 07498328031 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0100 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0996 |
Panduit - EV18-6FB-L - Videos
| Video 1 | Click to View |
|---|
