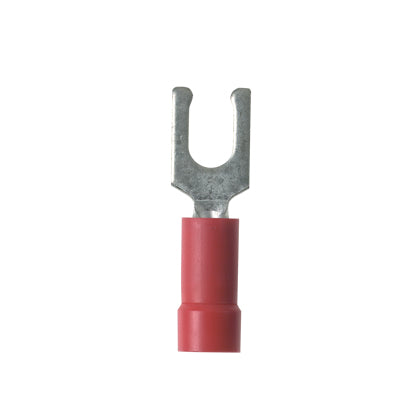

Panduit EV18-6LFB-Q | Fork Terminal | UPC - 61305636659
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
10044326
Regular price
$8.90
Unit price
Description
Description
Panduit StrongHold Fork Terminal, Series: EV-LFB, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.9 in Length, Beveled Edge/Butted Seam/Funnel/Serrated Barrel, Locking Fork Tongue, 0.27 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 221 deg F, Copper, Tin Plated, Red
- Locks in place for secure connection
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Fork design provides for fast and easy installation, without the need to remove fastener
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit EV18-6LFB-Q | Fork Terminal | UPC - 61305636659 Key Specs
| Note | PV18-6LF-CY replaces PV18-6LF-C |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit EV18-6LFB-Q | Fork Terminal | UPC - 61305636659 Environmental Information
| Panduit's RoHS Statement | Download and View |
