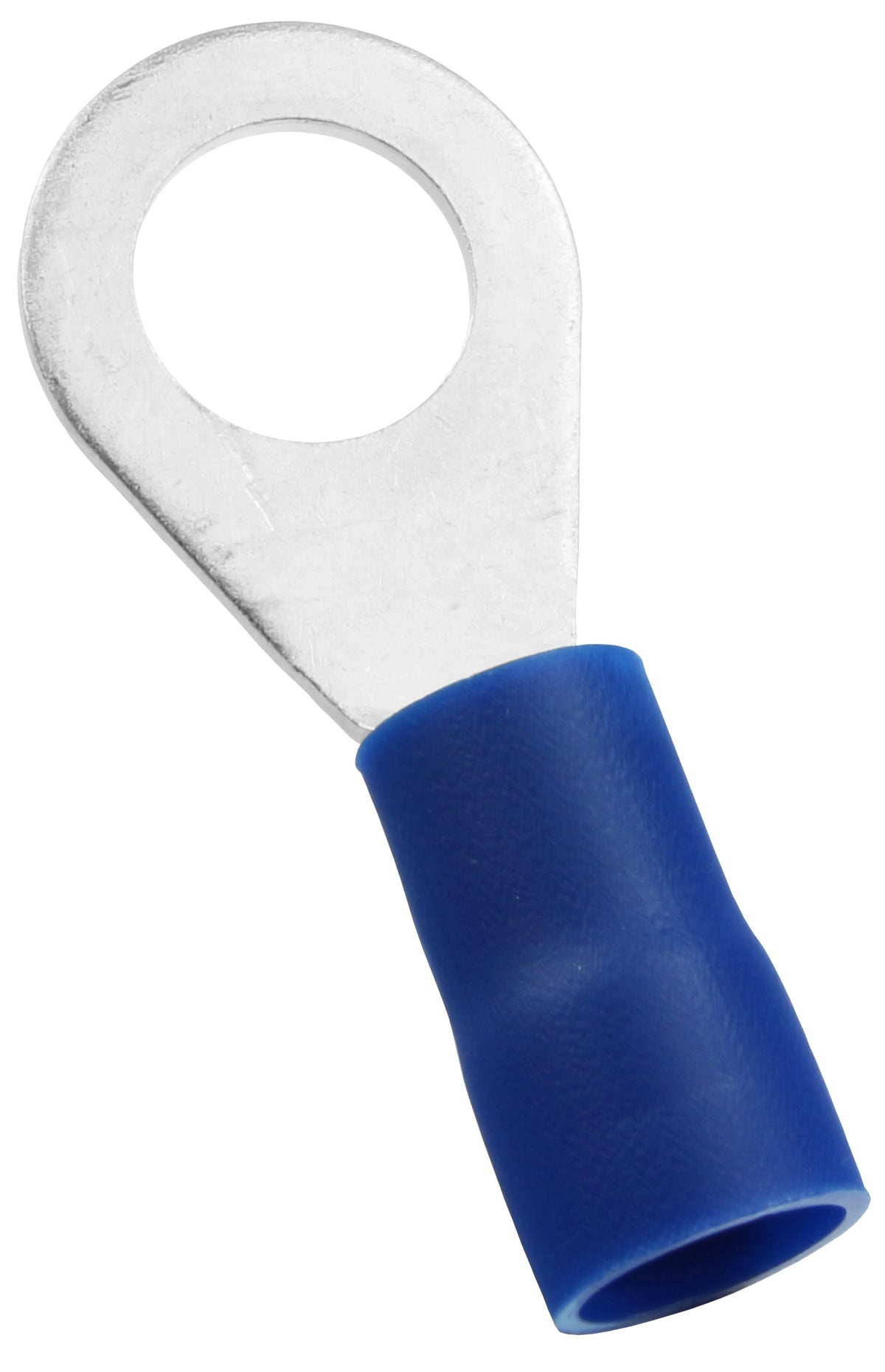

Panduit EV6-12R-Q | Ring Terminal | UPC - 61305634197
Regular price
$41.77
Unit price
Brand: Panduit
|
SKU:
10044348
Regular price
$41.77
Unit price
Description
Description
Panduit StrongHold Ring Terminal, Insulated, Stranded Copper Conductor, 6 AWG Conductor, 1/2 in Stud, 2.1 in Length, Brazed Seam Barrel, Ring Tongue, 0.87 in W x 0.059 in THK Tongue, 600 VAC, 9/16 in L Wire Strip, 0.4 in Dia Insulation, 221 deg F, Copper/Vinyl, Tin Plated, Blue
Panduit Panduit EV6-12R-Q | Ring Terminal | UPC - 61305634197 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°F) | 221 |
| Stud Hole Size (In.) | 47/100 |
| Stud Hole Size (mm) | 12 |
| Insulation Material | Vinyl |
| Wire Strip Length (In.) | 0.56 |
| Wire Strip Length (mm) | 14.3 |
| Standards Met | UL Listed 20U0 E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Standard |
| Barrel Length (In.) | 0.45 |
| Barrel Length (mm) | 11.3 |
| Flammability Rating | UL 20 U-0 |
| Insulation Diameter (In.) | 0.4 |
| Insulation Diameter (mm) | 10.1 |
| Maximum Operating Temperature (°C) | 105 |
Panduit Panduit EV6-12R-Q | Ring Terminal | UPC - 61305634197 Environmental Information
| Panduit's RoHS Statement | Download and View |
