Brand: Panduit
|
SKU:
10044354

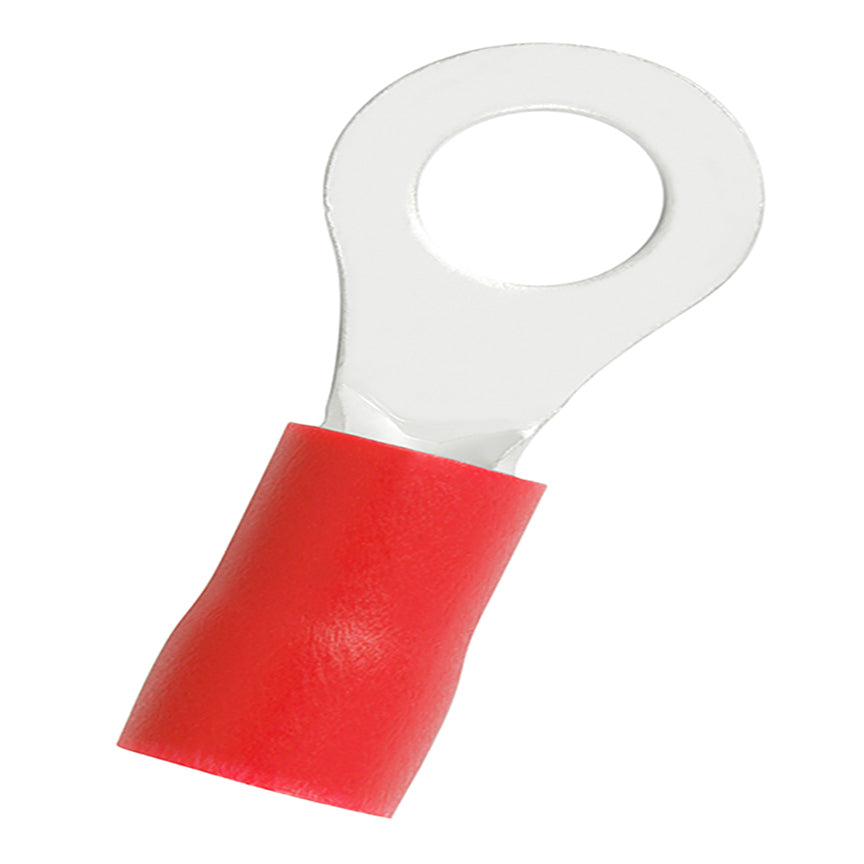

Panduit EV8-56R-Q | Ring Terminal | UPC - 61305634217
Regular price
$32.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EV8-56R-Q | Ring Terminal | UPC - 61305634217
Regular price
$32.63
Unit price
Description
Description
Panduit StrongHold Ring Terminal, Insulated, Stranded Copper Conductor, 8 AWG Conductor, 5/16 in Stud, 1-1/2 in Length, Brazed Seam Barrel, Ring Tongue, 0.59 in W x 0.047 in THK Tongue, 600 VAC, 15/32 in L Wire Strip, 0.32 in Dia Insulation, 221 deg F, Copper/Vinyl, Tin Plated, Red
Panduit Panduit EV8-56R-Q | Ring Terminal | UPC - 61305634217 Key Specs
| Minimum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°F) | 221 |
| Stud Hole Size (In.) | 31/100 |
| Stud Hole Size (mm) | 8 |
| Insulation Material | Vinyl |
| Wire Strip Length (In.) | 0.47 |
| Wire Strip Length (mm) | 11.9 |
| Standards Met | UL Listed 20U0 E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Standard |
| Barrel Length (In.) | 0.33 |
| Barrel Length (mm) | 8.4 |
| Flammability Rating | UL 20 U-0 |
| Insulation Diameter (In.) | 0.32 |
| Insulation Diameter (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 105 |
Panduit Panduit EV8-56R-Q | Ring Terminal | UPC - 61305634217 Environmental Information
| Panduit's RoHS Statement | Download and View |
