Brand: Panduit
|
SKU:
264739
Panduit F1.5X1.5WH6 | Panduct Base Wiring Duct
Regular price
$50.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F1.5X1.5WH6 | Panduct Base Wiring Duct
Regular price
$50.91
Unit price
Description
Description

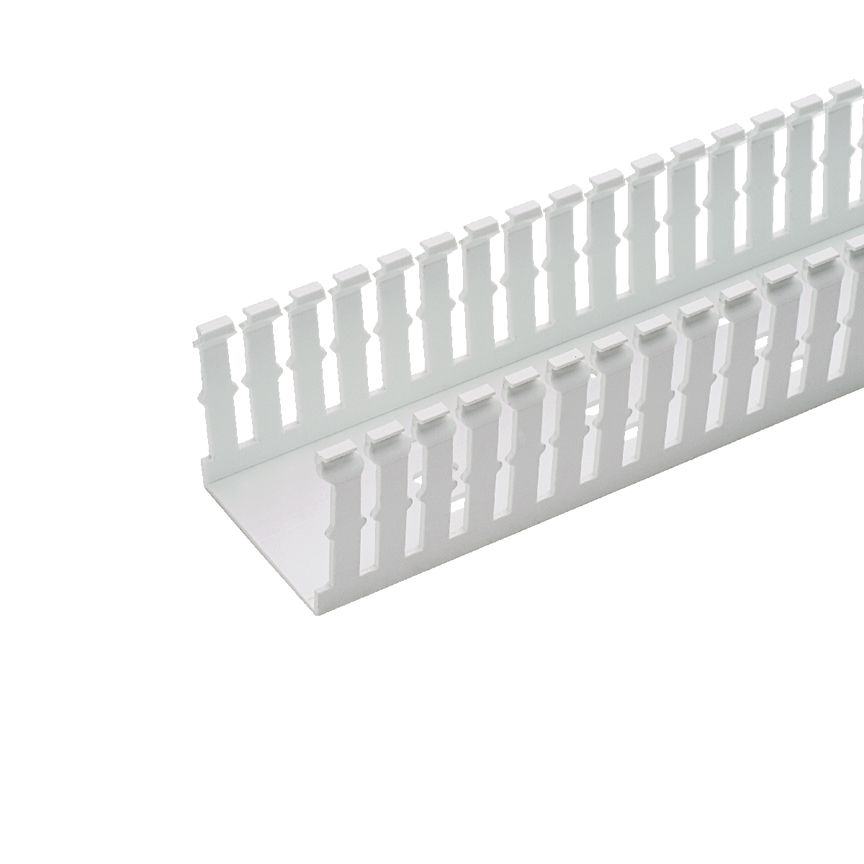

Panduit F1.5X1.5WH6 | Panduct Base Wiring Duct
Our Type F narrow slot wiring duct precisely channels high-density wiring in control panels, providing you a secure and organized solution for efficient cable management.
Panduit Slot Wall Wiring Duct, Type F Narrow, 1-3/4 in Width, 1-1/2 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, White
Panduit - F1.5X1.5WH6 - Features
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
Specifications
Specifications
Panduit - F1.5X1.5WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1.5X1.5WH6 |
| Duct Dimensions (In.) | 1.75W x 1.12H |
| Product Type | Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | White |
| Cover Part Number | C1.5WH6 |
| Flammability Rating | UL94 V-0 |
| Includes | Wiring Duct Base |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.4 |
| Overall Height (In.) | 1.12 |
| Overall Height (mm) | 41.1 |
| Slot Width (In.) | 0.2 |
| UPC | 07498337526 |
Panduit - F1.5X1.5WH6 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - F1.5X1.5WH6 - Videos
| Panduit F1.5X1.5WH6 Video 1 | Click to View |
|---|
