Brand: Panduit
|
SKU:
680670

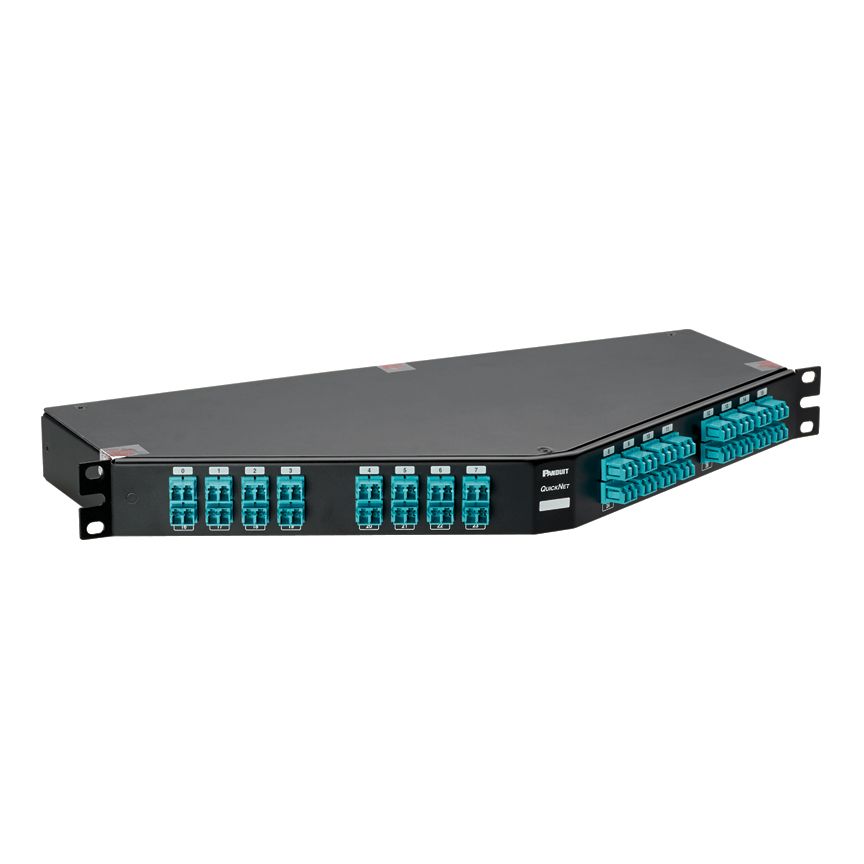

Panduit F1ACZN-6408-10S | QuickNet™ HDQ Fiber Optic Cassette
Regular price
$2,678.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F1ACZN-6408-10S | QuickNet™ HDQ Fiber Optic Cassette
Regular price
$2,678.44
Unit price
Description
Description
Panduit F1ACZN-6408-10S | QuickNet™ HDQ Fiber Optic Cassette
QuickNet HDQ Series High Density Fiber Optic Cassette, OM4 64-fiber, Cisco-type labeling, 1 RU angled profile, standard loss, 8-fiber MTP to Duplex LC - method A
Our HDQ fiber optic cassette offers high-density, pre-terminated connections. Ideal for data centers, it ensures efficient, reliable network performance.
Panduit - F1ACZN-6408-10S - Features
- Without pulling eye
Specifications
Specifications
Panduit - F1ACZN-6408-10S - Specifications
| Connector Type | Lc |
|---|---|
| UNSPSC Code | 43223328 |
| Fiber Type | OM4 |
| Sub Brand | QuickNet™ |
| Number of Fibers | 64 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 17.4 |
| Overall Width (mm) | 440.8 |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 43.7 |
| Overall Depth (In.) | 8.4 |
| Overall Depth (mm) | 214.9 |
| Product Type | High Density Cassette |
| Application | Cable Management in High-Density Network |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, RoHS Compliant. Supports IEEE 802.3ae(10 Gigabit Ethernet) and ANSI T11.2 (Fiber Channel) channel and link specifications. MTP* connector exceeds TIA/EIA-455-21A: 1000 matingcycles (multimode). |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| UPC | 07498337260 |
Panduit - F1ACZN-6408-10S - Package Information
| UPC | 07498337260 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.3917 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Documents and Downloads
Documents and Downloads
- Panduit F1ACZN-6408-10S Specification Sheet
- Panduit F1ACZN-6408-10S Specification Sheets
- Panduit F1ACZN-6408-10S Technical References
- Panduit F1ACZN-6408-10S Part Drawings
- Panduit F1ACZN-6408-10S Technical References
- Panduit F1ACZN-6408-10S Application Guides
- Panduit F1ACZN-6408-10S Application Guides
- Panduit F1ACZN-6408-10S RoHS Statement
