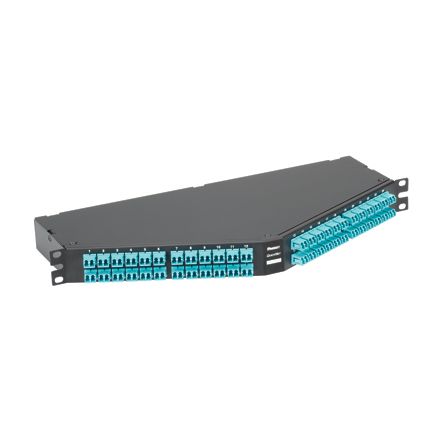

Panduit F1ASXN-9612-10S | Quicknet High Density Cassette
Regular price
$3,582.57
Unit price
Brand: Panduit
|
SKU:
443836
Regular price
$3,582.57
Unit price
Description
Description
Panduit F1ASXN-9612-10S | Quicknet High Density Cassette
Panduit F1ASXN-9612-10S | FIBER-ACCY | 96-F CASSETTE HDQ SERIES 10B
QuickNet HDQ Series High Density Fiber Optic Cassette, 1RU-Angled 96-fiber S-type labeling, OM3 12-fiber MTP
Specifications
Specifications
Panduit - F1ASXN-9612-10S - Product Categories
- Fiber Optic Systems
- Fiber Optic Cassettes
Panduit - F1ASXN-9612-10S - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1ASXN-9612-10S |
| Item Description | Quicknet High Density Cassette |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM3 |
| Connection Type | LC |
| Sub Brand | QuickNet |
| Number of Fibers | 96 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia ceramic |
| Adapter Color | Aqua |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 17.4 |
| Overall Width (mm) | 440.8 |
| Overall Depth (In.) | 8.4 |
| Overall Depth (mm) | 214.9 |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 43.7 |
| Standards Met | RoHS directive is not applicable. Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1. Supports IEEE 802.3ae (10 Gigabit Ethernet) and ANSI T11.2 (Fiber Channel) channel and link specifications. MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles (multimode). |
| Product Type | High Density Cassette |
| Application | Cable Management in High-Density Network |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
Panduit - F1ASXN-9612-10S - Package Information
| UPC | 07498322078 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3926 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
