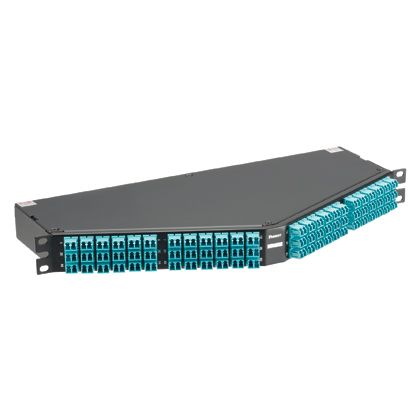

Panduit F1ASZN-1A12-10S | Quicknet High Density MPO-LC Cassette OM4...
Description
Description
Our HDQ fiber optic cassette offers high-density, pre-terminated connections. Ideal for data centers, it ensures efficient, reliable network performance.
QuickNet HDQ Series High Density Fiber Optic Cassette, 1RU Angled 144-fiber S-type labeling, OM4 12-fiber MTP
Panduit QuickNet Fiber Optic Cassette, Angled High Density, Series: HDQ, Duplex Adapter, LC Duplex End A, MPO Male End B, 144 Fibers, 10Gig 50/125 um OM4 Multi-Mode Fiber, Zirconia Ceramic Connector
Panduit - F1ASZN-1A12-10S - Features
- Optimized performance enhancement unique, industry leading proprietary MTP polishing processes
- High density design maximizes density with up to 144 fiber connections in 1RU for efficient utilization of rack space
- Design features provides lower total cost of ownership
- Reduces or eliminates the need for additional infrastructure support
- 100% performance tested, provides consistent high performance and reliability for improved network integrity
- Provides improved reliability and quick deployment to reduce installation time and cost
Specifications
Specifications
Panduit - F1ASZN-1A12-10S - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1ASZN-1A12-10S |
| Connector Type | Lc |
| Fiber Count | 144 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM4 |
| Sub Brand | Opticom |
| Number of Fibers | 144 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Product Type | Fiber Cassette |
| UPC | 07498340995 |
Panduit - F1ASZN-1A12-10S - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|
Documents and Downloads
Documents and Downloads
- Panduit F1ASZN-1A12-10S Specification Sheet
- Panduit F1ASZN-1A12-10S Specification Sheets
- Panduit F1ASZN-1A12-10S Part Drawings
- Panduit F1ASZN-1A12-10S Specification Sheets
- Panduit F1ASZN-1A12-10S Technical References
- Panduit F1ASZN-1A12-10S Technical References
- Panduit F1ASZN-1A12-10S Application Guides
- Panduit F1ASZN-1A12-10S Application Guides
- Panduit F1ASZN-1A12-10S RoHS Statement
