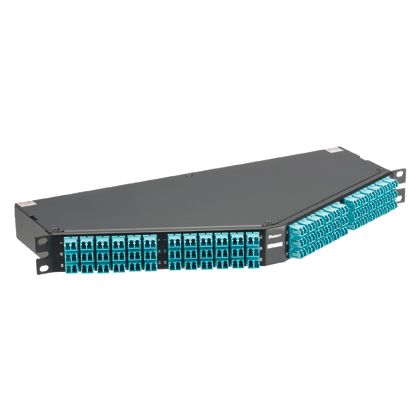

Panduit F1ASZO-1A12-10F | QuickNet™ HDQ Fiber Optic Cassette
Regular price
$7,628.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F1ASZO-1A12-10F | QuickNet™ HDQ Fiber Optic Cassette
Regular price
$7,628.11
Unit price
Description
Description
Panduit F1ASZO-1A12-10F | QuickNet™ HDQ Fiber Optic Cassette
QuickNet HDQ Series High Density Fiber Optic Cassette, 1RU Angled 144-fiber S-type labeling, Optimized OM4 12-fiber MTP
Our HDQ fiber optic cassette offers high-density, pre-terminated connections. Ideal for data centers, it ensures efficient, reliable network performance.
Panduit - F1ASZO-1A12-10F - Features
- Without pulling eye
Specifications
Specifications
Panduit - F1ASZO-1A12-10F - Specifications
| Fiber Type | OM4 |
|---|---|
| Sub Brand | QuickNet™ |
| Number of Fibers | 144 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 17.4 |
| Overall Width (mm) | 440.8 |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 43.7 |
| Overall Depth (In.) | 8.4 |
| Overall Depth (mm) | 214.9 |
| Product Type | High Density Cassette |
| Application | Cable Management in High-Density Network |
| Standards Met | RoHS directive is not applicable. Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1. Supports IEEE 802.3ae (10 Gigabit Ethernet) and ANSI T11.2 (Fiber Channel) channel and link specifications. MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles (multimode). |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| UPC | 07498340998 |
Panduit - F1ASZO-1A12-10F - Package Information
| UPC | 07498340998 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.3926 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Documents and Downloads
Documents and Downloads
- Panduit F1ASZO-1A12-10F Specification Sheets
- Panduit F1ASZO-1A12-10F Part Drawings
- Panduit F1ASZO-1A12-10F Specification Sheets
- Panduit F1ASZO-1A12-10F Technical References
- Panduit F1ASZO-1A12-10F Technical References
- Panduit F1ASZO-1A12-10F Application Guides
- Panduit F1ASZO-1A12-10F Application Guides
- Panduit F1ASZO-1A12-10F RoHS Statement
