Brand: Panduit
|
SKU:
PAN-F1RBZN-9608-10S

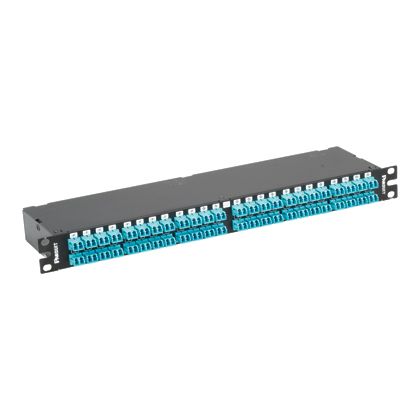

Panduit F1RBZN-9608-10S | QuickNet High Density Cassette
Regular price
$4,168.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F1RBZN-9608-10S | QuickNet High Density Cassette
Regular price
$4,168.12
Unit price
Brand: Panduit
|
SKU:
PAN-F1RBZN-9608-10S
Regular price
$4,168.12
Unit price
Shipping calculated at checkout.
Description
Description
Panduit F1RBZN-9608-10S | QuickNet High Density Cassette
QuickNet HDQ Series High Density Fiber Optic Cassette, 1RU 96-fiber B-type labeling, OM4 8-fiber MTP

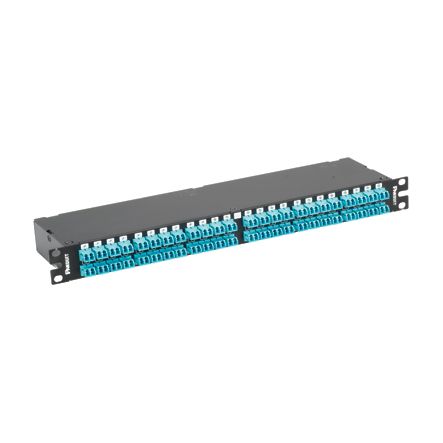

Panduit F1RBZN-9608-10S | MODULE | 96-F CASSETTE HDQ SERIES OM4
Specifications
Specifications
Panduit - F1RBZN-9608-10S - Product Categories
- Fiber Optic Systems
- Fiber Optic Cassettes
Panduit - F1RBZN-9608-10S - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1RBZN-9608-10S |
| Item Description | QuickNet High Density Cassette |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM4 |
| Connection Type | LC |
| Sub Brand | QuickNet |
| Number of Fibers | 96 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia ceramic |
| Adapter Color | Aqua |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 17.3 |
| Overall Width (mm) | 441 |
| Overall Depth (In.) | 5.7 |
| Overall Depth (mm) | 144 |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 44 |
| Standards Met | RoHS directive is not applicable. Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1. Supports IEEE 802.3ae (10 Gigabit Ethernet) and ANSI T11.2 (Fiber Channel) channel and link specifications. MTP* connector exceeds TIA/EIA-455-21A: 1000 mating cycles (multimode). |
| Product Type | High Density Cassette |
| Application | Cable Management in High-Density Network |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
Panduit - F1RBZN-9608-10S - Package Information
| UPC | 07498321953 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3917 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
