Brand: Panduit
|
SKU:
680707
Panduit F1RBZO-9608-10F | QuickNet™ HDQ Fiber Optic Cassette
Regular price
$5,412.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F1RBZO-9608-10F | QuickNet™ HDQ Fiber Optic Cassette
Regular price
$5,412.66
Unit price
Description
Description

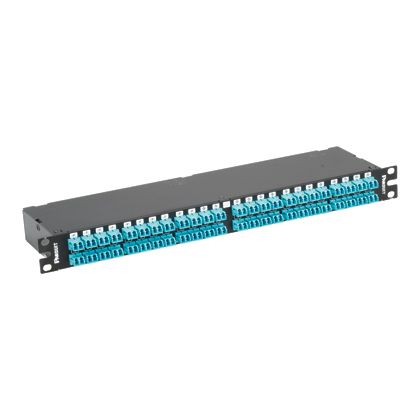

Panduit F1RBZO-9608-10F | QuickNet™ HDQ Fiber Optic Cassette
QuickNet HDQ Series High Density Fiber Optic Cassette, 1RU 96-fiber B-type labeling, Optimized OM4 8-fiber MTP
Our HDQ fiber optic cassette offers high-density, pre-terminated connections. Ideal for data centers, it ensures efficient, reliable network performance.
Panduit - F1RBZO-9608-10F - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - F1RBZO-9608-10F - Specifications
| Connector Type | Lc |
|---|---|
| Fiber Count | 96 |
| UNSPSC Code | 43223328 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM4 |
| Sub Brand | QuickNet™ |
| Number of Fibers | 96 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 17.3 |
| Overall Width (mm) | 441 |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 44 |
| Overall Depth (In.) | 5.7 |
| Overall Depth (mm) | 144 |
| Product Type | High Density Cassette |
| Application | Cable Management in High-Density Network |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, supports IEEE 802.3ae and ANSI T11.2, exceeds TIA/EIA-455-21A |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| UPC | 07498321959 |
Panduit - F1RBZO-9608-10F - Package Information
| UPC | 07498321959 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.3917 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Documents and Downloads
Documents and Downloads
- Panduit F1RBZO-9608-10F Specification Sheet
- Panduit F1RBZO-9608-10F Specification Sheets
- Panduit F1RBZO-9608-10F Part Drawings
- Panduit F1RBZO-9608-10F Specification Sheets
- Panduit F1RBZO-9608-10F Specification Sheets
- Panduit F1RBZO-9608-10F Technical References
- Panduit F1RBZO-9608-10F Technical References
- Panduit F1RBZO-9608-10F Application Guides
- Panduit F1RBZO-9608-10F RoHS Statement
