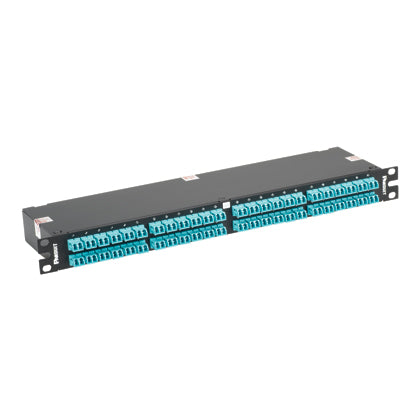

Panduit F1RCZN-9612-10S | Quicknet High Density MPO-LC Cassette OM4...
Description
Description
Our HDQ fiber optic cassette offers high-density, pre-terminated connections. Ideal for data centers, it ensures efficient, reliable network performance.
QuickNet HDQ Series High Density Fiber Optic Cassette, 1RU 96-fiber C-type labeling, OM4 12-fiber MTP
The QuickNet HDQ Series fiber optic Cassettes is a component of the QuickNet fiber optic Cabling System. QuickNet HDQ Series fiber optic Cassettes are used in high-density network applications as specified in the Data Center Cabling Standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas. The QuickNet Pre-Terminated Cabling System meets the demands of Gigabit Ethernet, 10 Gigabit Ethernet, and high speed Fiber Channel systems while maintaining compatibility with Ethernet, Fast Ethernet, and ATM. QuickNet HDQ Series fiber optic Cassettes are pre-terminated and designed to mount into 19 in wide telecommunications racks allowing 96 fiber connections to be deployed in one rack unit (1 RU) without additional support infrastructure. This ensures efficient use of space, quick deployment, and the highest reliability for the lowest installed cost. This space saving one rack unit package provides port mapped compatibly with the SAN market switch blade leaders, Cisco and Brocade. The Panduit high density Fiber Cassette solution will provide increased access between ports, thus enabling the ease of moves, adds, and changes.
Panduit QuickNet Fiber Optic Cassette, Type C, Series: HDQ, Duplex Adapter, LC End A, Male MPT End B, 96 Fibers, OM4 Multi-Mode Fiber, Metal, Rack Mount
Panduit - F1RCZN-9612-10S - Features
- Mounts to standard 19 in rack rails
- Low insertion loss of 0.5 dB max, per optimized cassette and 0.75 dB max per standard cassette, ensures system meets IEEE 802.3ae max channel loss specification of 26 dB
- Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme
- Connect together with high density female MTP cable assemblies as interconnection network
- Significantly reduce installation time and labor by eliminating field connector termination
- Factory terminated, assembled and 100% tested
- Insertion loss data provided on every fiber cassette
- Lifetime traceability of test data to a Q.C. number
- 10Gig OM4 50/125 um fiber cassettes are tested per IEEE 802.3ae 10 GbE to support network transmission speeds up to 10 Gb/s for link lengths up to 550 meters at 850 nm, backward compatible with all 50/125 um (OM2) MPO or MTP system requirements
- High density, flat faceplate
- Pre terminated flipped polarity
- Zirconia ceramic split sleeve
Specifications
Specifications
Panduit - F1RCZN-9612-10S - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1RCZN-9612-10S |
| Connector Type | Mpo - Lc |
| Fiber Type | Om4 |
| Number Of Fibers | 96 Fiber |
| Type | Modules |
| UNSPSC Code | 43223300 |
| Fiber Type | OM4 |
| Sub Brand | Opticom |
| Number of Fibers | 96 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Product Type | Fiber Cassette |
| UPC | 07498321954 |
Panduit - F1RCZN-9612-10S - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|
