Panduit F1RS9N-1A12-10F | Quicknet High Density MPO-LC Cassette OS2...
Description
Description
Our HDQ fiber optic cassette offers high-density, pre-terminated connections. Ideal for data centers, it ensures efficient, reliable network performance.

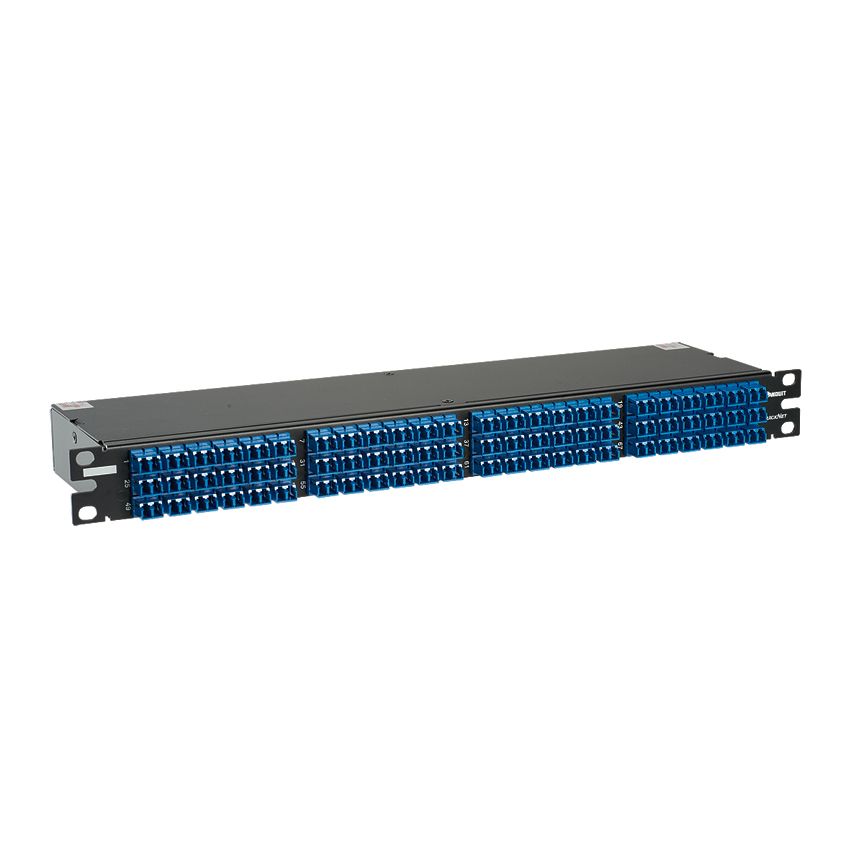

QuickNet 144-fiber flat, single-mode OS1/OS2 HDQ Series High Density Fiber Optic Cassette Modified Method A (flipped pairs)
Panduit QuickNet Fiber Optic Cassette, High Density Flat, Series: HDQ, Duplex Adapter, LC Duplex End A, MPO Male End B, 144 Fibers, 9/125 um OS2 Singlemode Fiber, Zirconia Ceramic Connector
Panduit - F1RS9N-1A12-10F - Features
- Optimized performance enhancement unique, industry leading proprietary MTP polishing processes
- High density design maximizes density with up to 144 fiber connections in 1RU for efficient utilization of rack space
- Design features provides lower total cost of ownership
- Reduces or eliminates the need for additional infrastructure support
- 100% performance tested, provides consistent high performance and reliability for improved network integrity
- Provides improved reliability and quick deployment to reduce installation time and cost
Specifications
Specifications
Panduit - F1RS9N-1A12-10F - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1RS9N-1A12-10F |
| Connector Type | Lc |
| Fiber Count | 144 |
| UNSPSC Code | 43223328 |
| Fiber Type | OS2 |
| Sub Brand | Opticom |
| Number of Fibers | 144 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Blue |
| Maximum Connector Insertion Loss (dB) | 1.1 |
| Minimum Connector Return Loss (dB) | 55 |
| Product Type | Fiber Cassette |
| UPC | 07498389504 |
Panduit - F1RS9N-1A12-10F - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
Documents and Downloads
Documents and Downloads
- Panduit F1RS9N-1A12-10F Specification Sheet
- Panduit F1RS9N-1A12-10F Specification Sheets
- Panduit F1RS9N-1A12-10F Technical References
- Panduit F1RS9N-1A12-10F Part Drawings
- Panduit F1RS9N-1A12-10F Technical References
- Panduit F1RS9N-1A12-10F Application Guides
- Panduit F1RS9N-1A12-10F Application Guides
- Panduit F1RS9N-1A12-10F RoHS Statement
