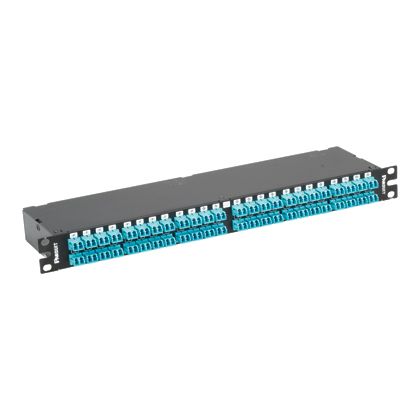

Panduit F1RSZO-9612-10F | Quicknet High Density MPO-LC Cassette OM4, 96F, 1RU Angled, Mod Meth A Opt IL
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F1RSZO-9612-10F | Quicknet High Density MPO-LC Cassette OM4...
Description
Description
Our HDQ fiber optic cassette offers high-density, pre-terminated connections. Ideal for data centers, it ensures efficient, reliable network performance.
QuickNet optimized HDQ Series high density fiber optic cassette, 1 RU 96-fiber S-type labeling, OM4 12-fiber MTP
Panduit QuickNet Fiber Optic Cassette, High Density Flat, Series: HDQ, Duplex Adapter, LC End A, Male MPO End B, 96 Fibers, 10Gig OM4 50/125 um Multi-Mode Fiber, Zirconia Ceramic
Panduit - F1RSZO-9612-10F - Features
- Optimized performance enhancement unique, industry leading proprietary MTP polishing processes
- High density design maximizes density with up to 144 fiber connections in 1RU for efficient utilization of rack space
- Design features provides lower total cost of ownership
- Reduces or eliminates the need for additional infrastructure support
- 100% performance tested, provides consistent high performance and reliability for improved network integrity
- Provides improved reliability and quick deployment to reduce installation time and cost
Specifications
Specifications
Panduit - F1RSZO-9612-10F - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1RSZO-9612-10F |
| Connector Type | Lc |
| Fiber Count | 96 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM4 |
| Sub Brand | Opticom |
| Number of Fibers | 96 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Product Type | Fiber Cassette |
| UPC | 07498352603 |
Panduit - F1RSZO-9612-10F - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit F1RSZO-9612-10F Specification Sheet
- Panduit F1RSZO-9612-10F Part Drawings
- Panduit F1RSZO-9612-10F Specification Sheets
- Panduit F1RSZO-9612-10F Technical References
- Panduit F1RSZO-9612-10F Technical References
- Panduit F1RSZO-9612-10F Application Guides
- Panduit F1RSZO-9612-10F Application Guides
- Panduit F1RSZO-9612-10F RoHS Statement
