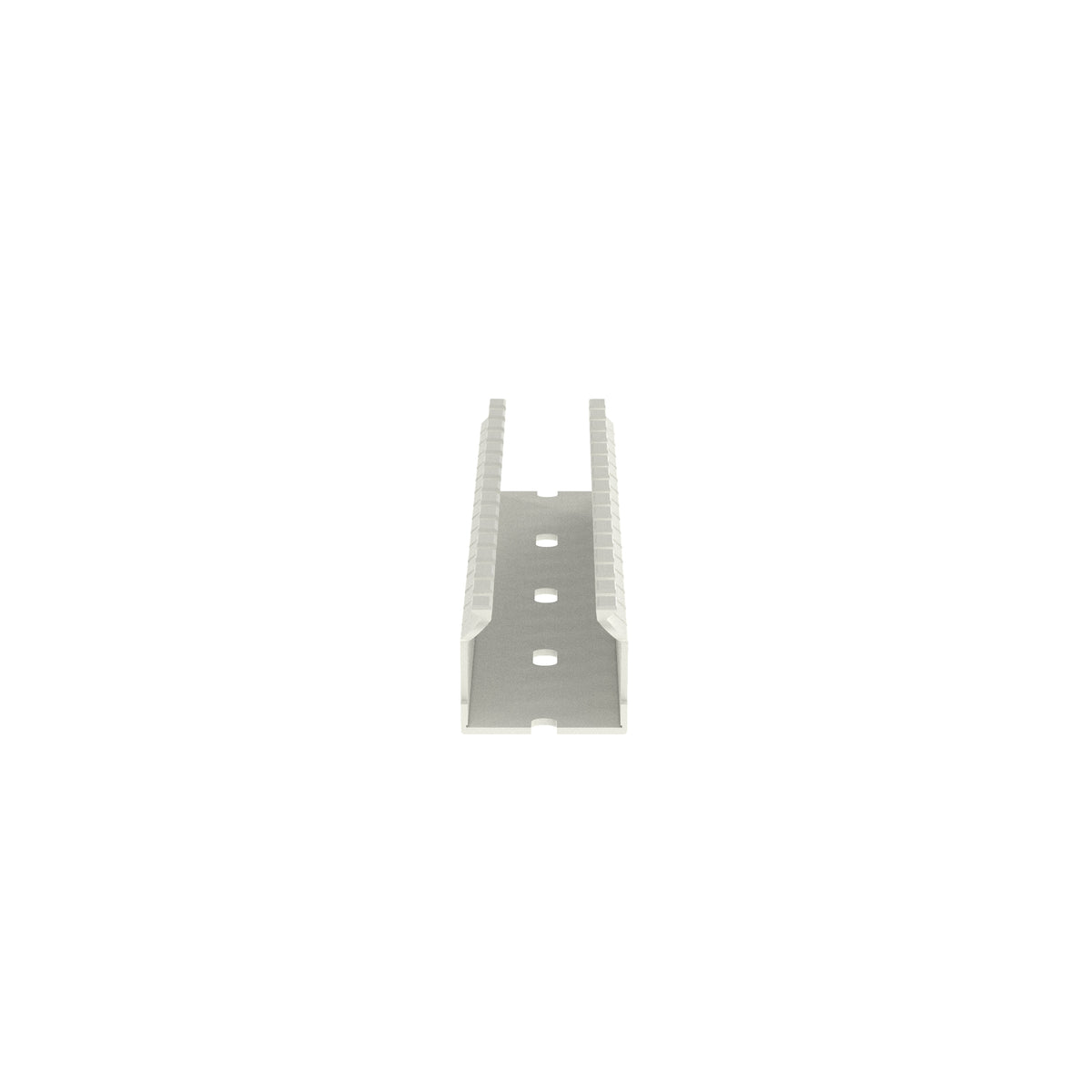

Panduit F1X1WH6 | Panduct Base Wiring Duct
Description
Description
Our Type F narrow slot wiring duct precisely channels high-density wiring in control panels, providing you a secure and organized solution for efficient cable management.

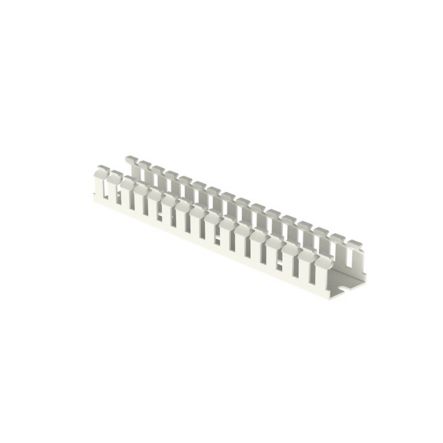

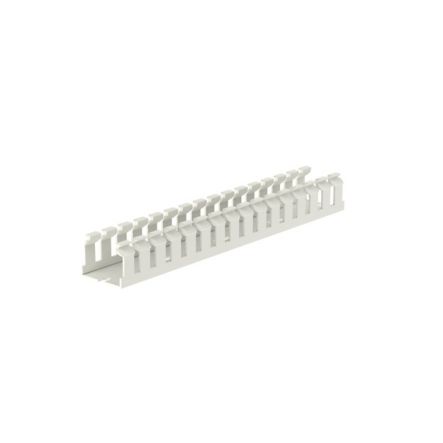

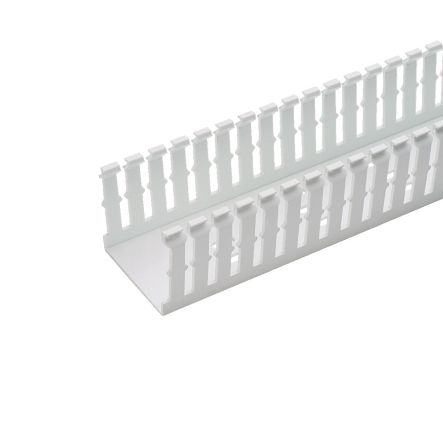

The F1X1WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 1.13" x 1.25" (28.7 mm x 31.8 mm) and 6’ (1.83 m) long. Cover sold separately. Color White. 6 per package.
Panduit Slot Wall Wiring Duct, Type F Narrow, 1.26 in Width, 1 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, White
Panduit - F1X1WH6 - Features
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122F (50C)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in Light Gray and White
- Provided with mounting holes
Specifications
Specifications
Panduit - F1X1WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1X1WH6 |
| Components | Slotted Duct High Density |
| Fiber Duct H X W | 1" X 1" |
| Material | Plastic |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 1.25W x 1.13H |
| Product Type | Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | White |
| Cover Part Number | C1WH6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 32 |
| Overall Height (In.) | 1.13 |
| Overall Height (mm) | 28.7 |
| Slot Width (In.) | 0.2 |
| UPC | 07498337502 |
Panduit - F1X1WH6 - Videos
| Panduit F1X1WH6 Video 1 | Click to View |
|---|---|
| Panduit F1X1WH6 Video 2 | Click to View |
