Panduit F1X2IB6 | Panduct F1X2IB6 Base Wiring Duct
Description
Description

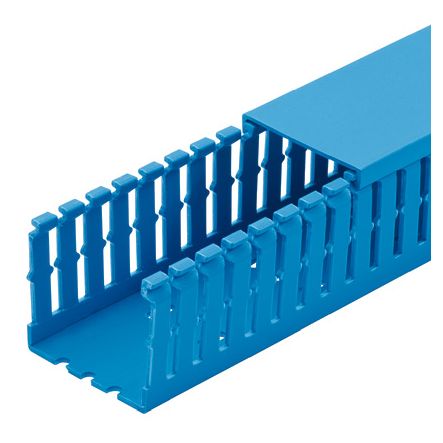

The F1X2IB6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1" x 2" (25.4 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Intrinsic Blue
Panduit F1X2IB6 - WIRE DUCT - SLOTTED WIRING DUCT 6FT
Specifications
Specifications
Panduit - F1X2IB6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - F1X2IB6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1X2IB6 |
| Item Description | Panduct F1X2IB6 Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Product Type | Base Wiring Duct |
| Color | Intrinsic Blue |
| Cover Part Number | C1IB6 |
| Flammability Rating | UL94 V-0 |
| Includes | Wiring Duct Base |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct |
| Part Features | Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time |
Panduit - F1X2IB6 - Package Information
| UPC | 07498301796 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0910 |
| Standard Ctn. Quantity | 120 |
| Standard Ctn. Volume (cf) | 1.8200 |
