Panduit F1X2LG6-A | Panduct F1X2LG6-A Base Wiring Duct
Description
Description

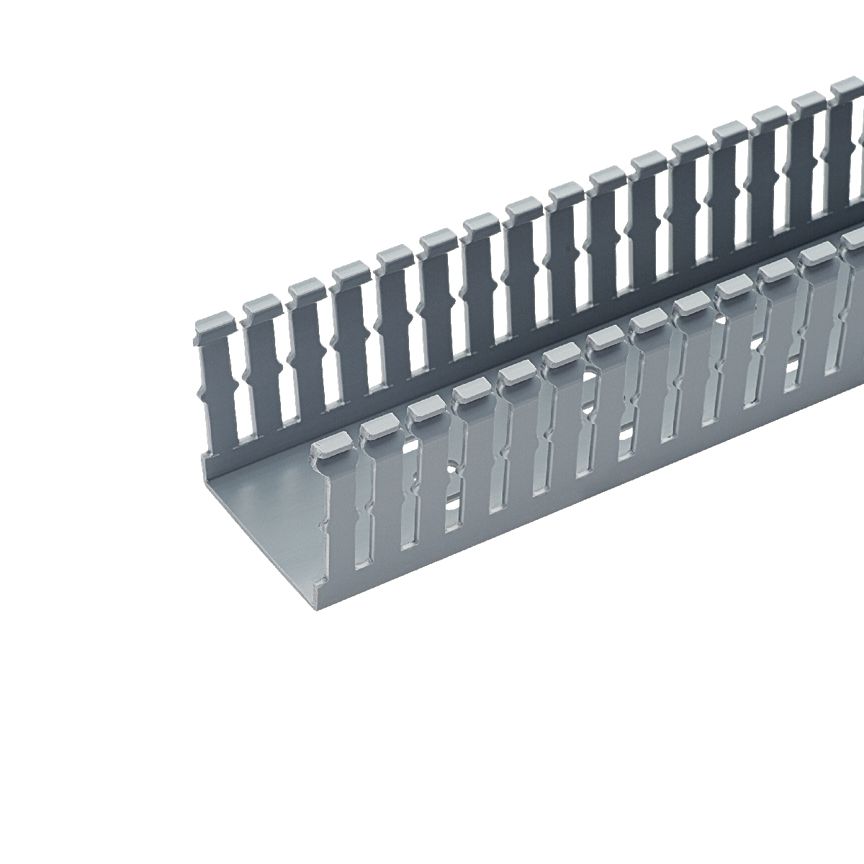

The F1X2LG6-A Panduct Lead-Free PVC Narrow Slot Adhesive Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1" x 2" (25.4 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Panduit F1X2LG6-A Panduct Type F Narrow Slotwiring Duct, 1 W X 2 H, 6'length, Pvc,
Specifications
Specifications
Panduit - F1X2LG6-A - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - F1X2LG6-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1X2LG6-A |
| Item Description | Panduct F1X2LG6-A Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C1LG6 |
| Flammability Rating | UL94 V-0 |
| Includes | Wiring Duct Base |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes with Adhesive |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct |
| Part Features | Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time |
Panduit - F1X2LG6-A - Package Information
| UPC | 07498333779 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0872 |
| Standard Ctn. Quantity | 120 |
| Standard Ctn. Volume (cf) | 1.7437 |
