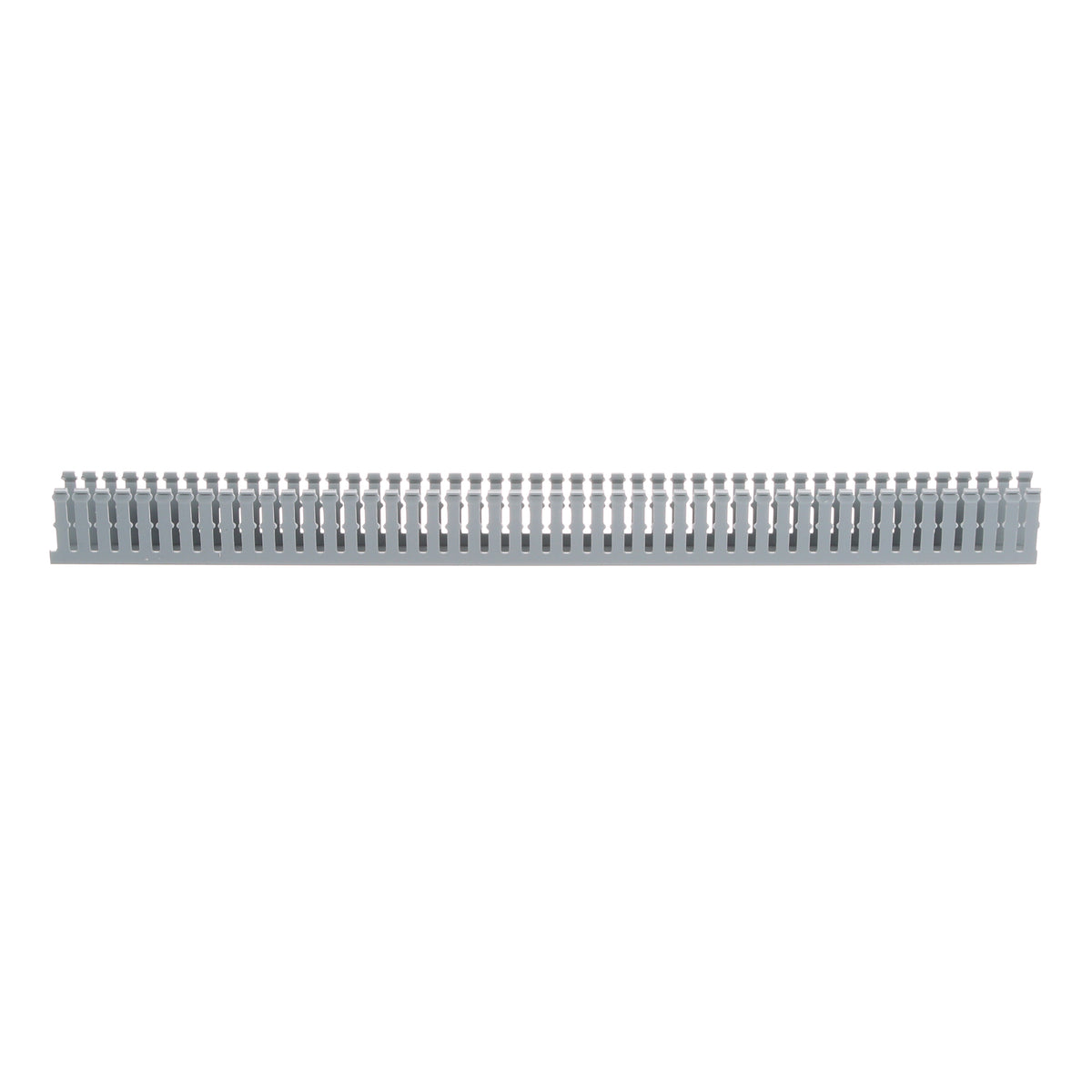

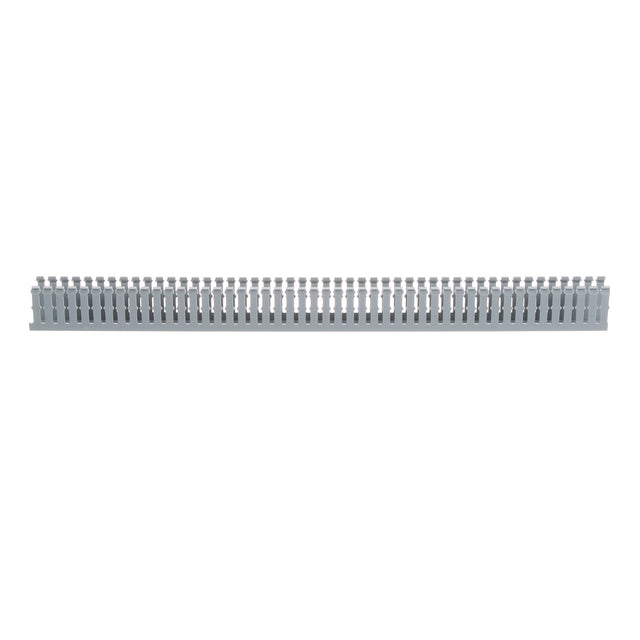

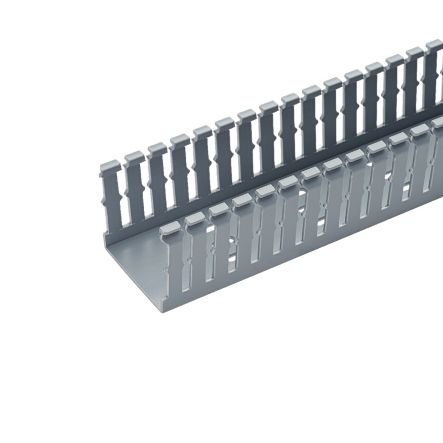

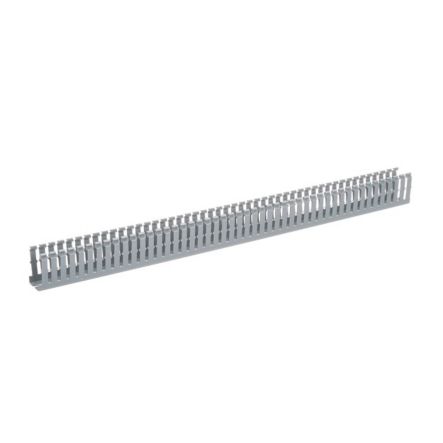

Panduit F1X2LG6 | Panduct Base Wiring Duct
Description
Description
Our Type F narrow slot wiring duct precisely channels high-density wiring in control panels, providing you a secure and organized solution for efficient cable management.
The F1X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 2.12" x 1.25" (53.8 mm x 31.8 mm) and 6’ (1.83 m) long. Cover sold separately. Color Light Gray. 6 per package.
Panduit Slot Wall Wiring Duct, Type F Narrow, 1.26 in Width, 2 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, Light Gray
Panduit - F1X2LG6 - Features
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
- Narrow Slot/Finger Design Provides More Slots to Fit the Spacing of High-Density Terminal Blocks and Other Hardware
- Provided with Mounting Holes
- Base and Cover Length is 6 Feet
Specifications
Specifications
Panduit - F1X2LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1X2LG6 |
| Components | Slotted Duct High Density |
| Fiber Duct H X W | 1" X 2" |
| Material | Plastic |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 1.25W x 2.12H |
| Product Type | Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | Light Gray |
| Cover Part Number | C1LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 32 |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Slot Width (In.) | 0.2 |
| UPC | 07498337511 |
Panduit - F1X2LG6 - Videos
| Panduit F1X2LG6 Video 1 | Click to View |
|---|
