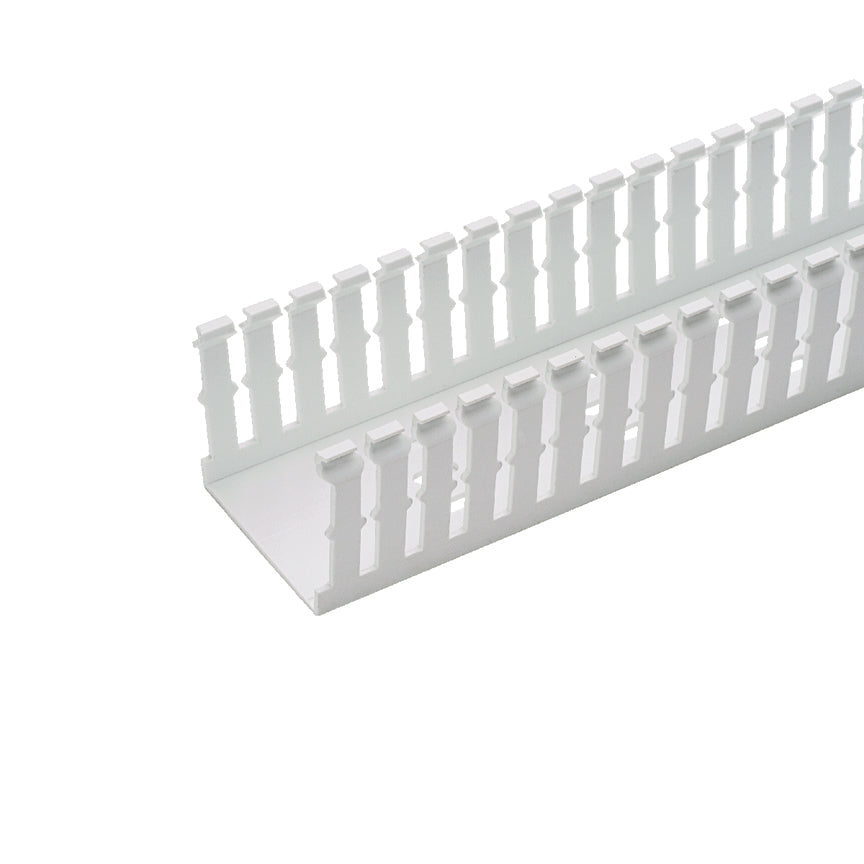

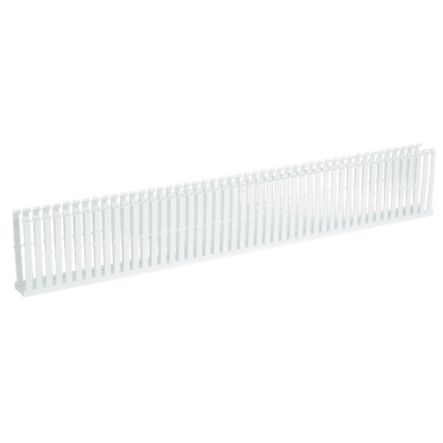

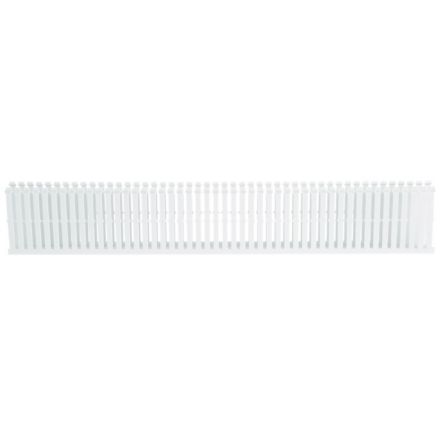

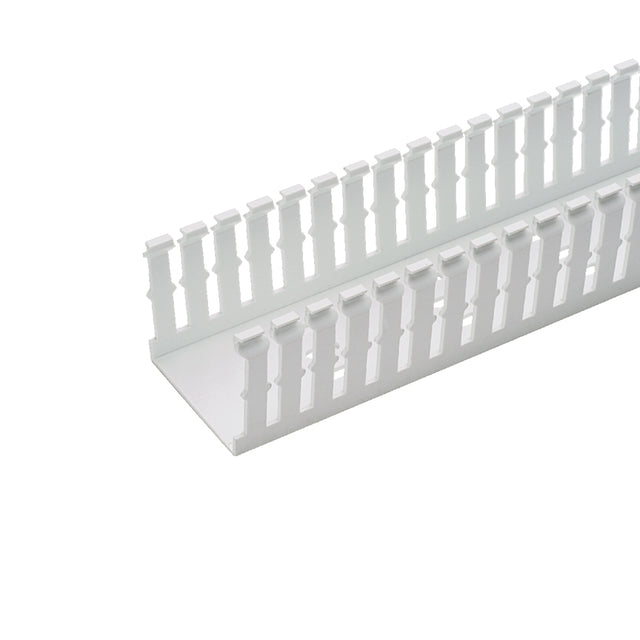

Panduit F1X4WH6 | Panduct Base Wiring Duct
Description
Description
Our Type F narrow slot wiring duct precisely channels high-density wiring in control panels, providing you a secure and organized solution for efficient cable management.
Slotted Duct, Polyvinyl Chloride, 1 Inch x 4 Inches x 6 Feet, White, Base and covers sold separately, Made of lead-free PVC, UL Recognized continuous use temperature: 122 Degrees F (50 Degrees C), UL94 Flammability Rating of V-0, Conforms with NFPA 79- 2002 section 14.3.1 requirement for flame retardant material, Available in Light Gray and White, Provided with mounting holes.
Panduit Slot Wall Wiring Duct, Type F Narrow, 1.26 in Width, 4 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, White
Panduit - F1X4WH6 - Features
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122F (50C)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in Light Gray and White
- Provided with mounting holes
Specifications
Specifications
Panduit - F1X4WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F1X4WH6 |
| Components | Slotted Duct High Density |
| Material | Plastic |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 1.25W x 4.1H |
| Product Type | Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | White |
| Cover Part Number | C1WH6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 32 |
| Overall Height (In.) | 4.1 |
| Overall Height (mm) | 104.1 |
| Slot Width (In.) | 0.2 |
| UPC | 07498337518 |
Panduit - F1X4WH6 - Videos
| Panduit F1X4WH6 Video 1 | Click to View |
|---|---|
| Panduit F1X4WH6 Video 2 | Click to View |
