Panduit F2PCLB58 LADDER Bracket/THREADED ROD BRACKET 2 PC.
Regular price
$35.24
Unit price
Brand: Panduit
|
SKU:
337122
Regular price
$35.24
Unit price
Description
Description
Panduit F2PCLB58 | FIBERRUNNER LADDER RACK, 2 PIECE BRACKET, BLACK

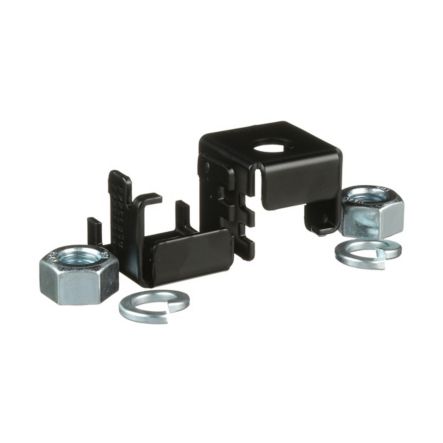

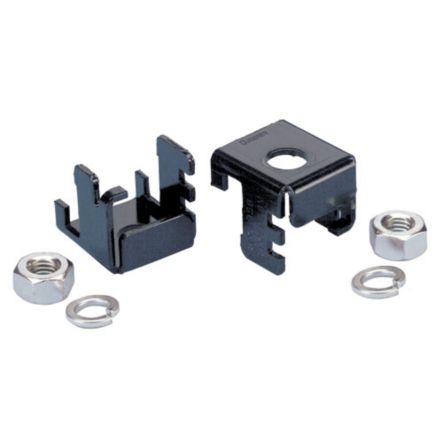

The fiber mounting 2-piece ladder rack bracket attaches to either a 3/8" (9.5mm) wide x 1 1/2" (38.1mm) or a 3/8" (9.5mm) wide x 2" (50.8mm) ladder rack rail. The bracket halves slide into position and clamp together on the ladder rack rail, which allows for one-handed assembly of the 5/8" threaded rod (not included). It contains the bracket and hardware for attaching the bracket to the ladder rack. It is black and made of steel.
Specifications
Specifications
Panduit - F2PCLB58 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - F2PCLB58 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F2PCLB58 |
| Item Description | FIBERRUNNER LADDER RACK, 2 PIECE BRACKET, BLACK |
| Application | The 12X4 Routing System Shall be a System of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. |
| Product Type | Ladder Rack |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Threaded Rod |
| Includes | (2) Bracket Clips, (2) 5/8" Helical Spring Lockwashers, (2) 1/2-11 Heavy Hex Nuts. |
| Material | Steel |
| Number of Pieces | 2 |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 43.2 |
| Overall Length (In.) | 1.66 |
| Overall Length (mm) | 42.2 |
| Overall Width (In.) | 1.8 |
| Overall Width (mm) | 45.8 |
| Standards Met | Ul Listed to 2024 Optical Fiber Cable Routing Assemblies UL Recognized (File No. E147128) Slotted Wall Csa Certified (File No. 016446 0 000) Slotted Wall |
| System Dimensions | 4x4, 6x4, 12x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Series Type | 12 x 4 FiberRunner Brackets |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - F2PCLB58 - Package Information
| UPC | 07498385498 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0284 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.2836 |
